| Calculated Volume (dm³) | 2.4375 |
| Calculated Weight (kg) | 0 |
| GTIN | 04057877000417 |
| Max. operating pressure | 10.0 bar |
| Max. temporarily pressure | 13 bar |
| Mounting | 4x M8 |
| Opening pressure | 0.5 bar |
| Operating pressure | 10.0 bar |
| Ports | 1, 2: M22×1.5 Voss; 4: M16×1.5 Voss |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Predominance | 0.20 bar |
| Product category | Device |
| ProVia Warranty | 1 yıl |
| Regulating ratio | 1:1 |
| Response pressure | 0.20 bar |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Version | Pressure reduction |
| Weight (kg) | 0.667 |

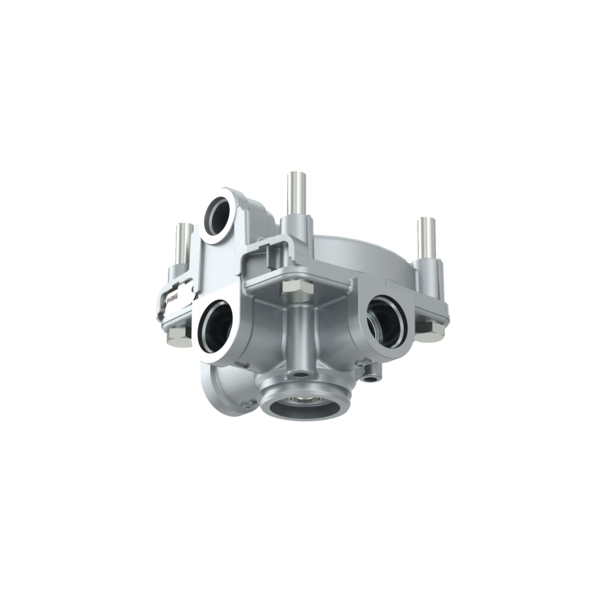

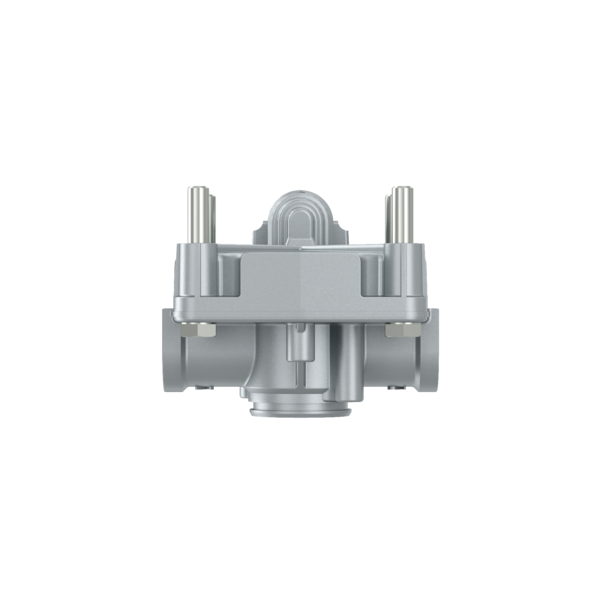

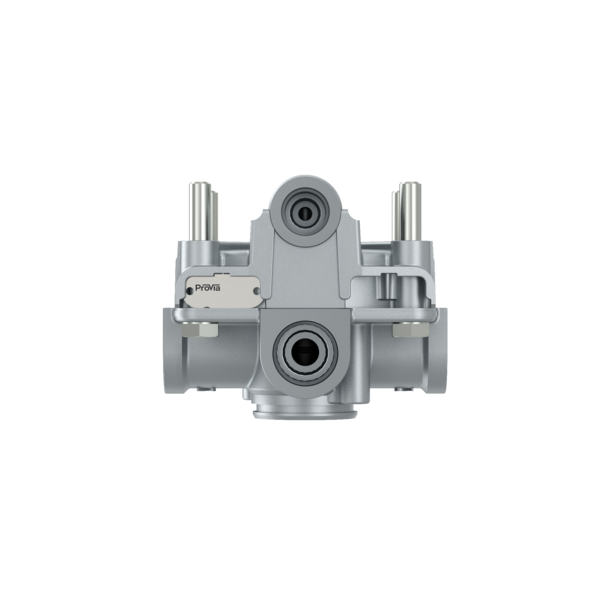

Röle valfi
Material Number: PRO0110060| Boyutlar (MM x MM x MM): | 150 x 125 x 130 |
| Ağırlık | 0.667 |
| GTIN | 04057877000417 |
Satın Al
Documents
| Assembly Guides | expl_pro0110060.tif | indir |
| Drawing | pro0110060____005_dascheck_c4_page-1---notset_tif.pdf | indir |
| Catalog | ProVia Ürün Kataloğu | indir |
Documents
| DAF | 1504915R |
| DAF | 1506485 |
| EVOBUS | A0044293844 |
| EVOBUS | A00442938440080 |
| FAW | 351801550A |
| FAW | S3518015Z77 |
| FELDBINDER | 052473 |
| FOTON | 1612135600091 |
| FOTON | H4356A02001A0 |
| FOTON | L0356A02006A0 |
| KING LONG | 235500300 |
| KING LONG | 35RB127010 |
| KNORR-BREMSE | 481026022000 |
| LANGENDORF | 1218398 |
| LOHR | A05021235 |
| MAN | 0044293844 |
| MAN | 81521166027 |
| MAN | 81521166070 |
| MAN | 81521169070 |
| MERCEDES-BENZ | 0034299344 |
| MERCEDES-BENZ | 00442938440080 |
| MERCEDES-BENZ | 004429384480 |
| MERCEDES-BENZ | A0044293844 |
| MERCEDES-BENZ | A00442938440080 |
| NEOPLAN | 81521166070 |
| OTOKAR | AIF0776 |
| PACCAR | 1504915R |
| RENAULT | 9730012100 |
| SCANIA | 1935656 |
| SCANIA | 2090236 |
| SINOTRUK (CNHTC) | AZ87351800100 |
| SINOTRUK (CNHTC) | WG9000360524/2 |
| SINOTRUK (CNHTC) | WG90003605242 |
| TIRSAN | 21151103060 |
| YUTONG | 352700042 |
| YUTONG | 352700042 |
