| Calculated Volume (dm³) | 2.3438 |
| Calculated Weight (kg) | 0 |
| GTIN | 04057877000196 |
| Max. operating pressure | 10.0 bar |
| Max. temporarily pressure | 13 bar |
| Mounting | 4x M8 |
| Opening pressure | 0.5 bar |
| Operating pressure | 10.0 bar |
| Ports | 1, 2: M22×1.5 Voss; 4: M16×1.5 Voss |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Predominance | 0.20 bar |
| Product category | Device |
| ProVia Warranty | 1 yıl |
| Regulating ratio | 1:1 |
| Response pressure | 0.20 bar |
| Silencer | Yes |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| UPC | 193134001774 |
| Version | Pressure reduction |
| Weight (kg) | 0.706 |
| Weight (lb) | 1.5565 |

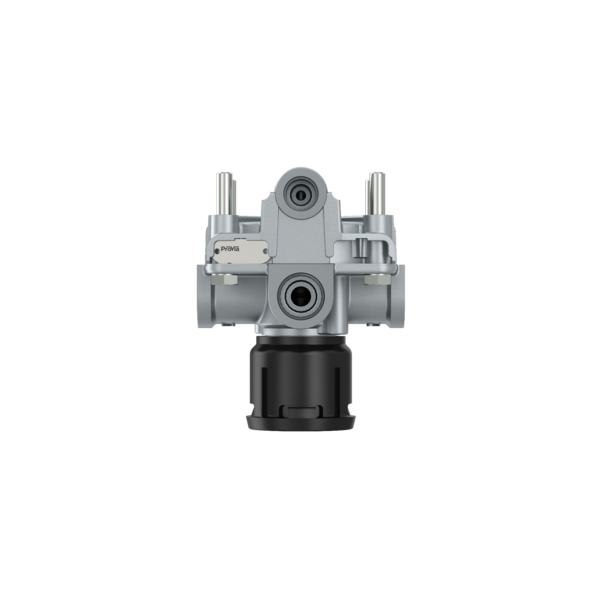

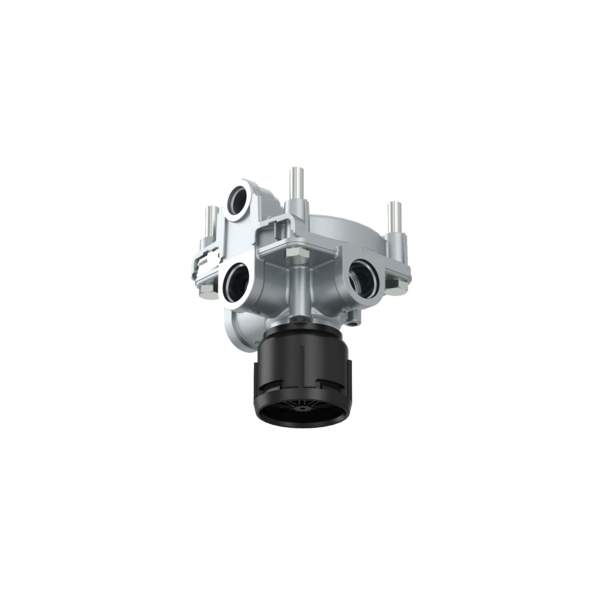

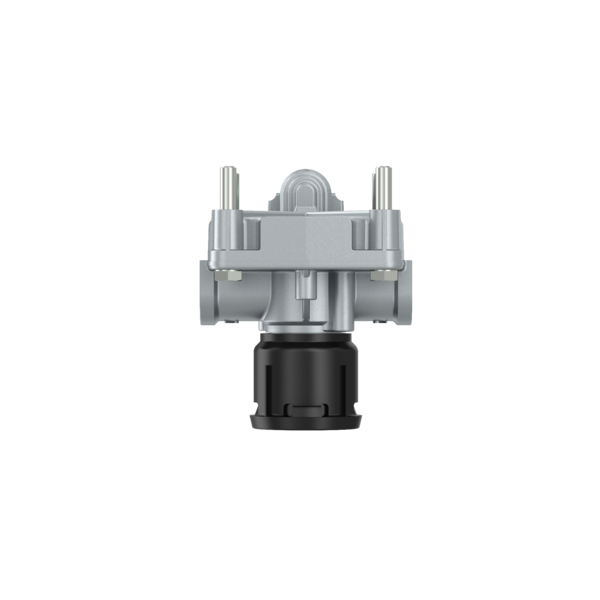

Röle valfi
Material Number: PRO0110070| Boyutlar (MM x MM x MM): | 125 x 125 x 150 |
| Ağırlık | 0.706 |
| GTIN | 04057877000196 |
Satın Al
Documents
| Assembly Guides | expl_pro0110070.tif | indir |
| Drawing | pro0110070____005_dascheck_c4_page-1---notset_tif.pdf | indir |
| Catalog | ProVia Ürün Kataloğu | indir |
Documents
| DAF | 1305026 |
| DAF | 1333733 |
| DAF | 1333733R |
| DAF | 1342511 |
| DAF | 1342511R |
| DAF | 1406865 |
| DAF | 1525397 |
| EVOBUS | A0044296244 |
| FIAT | 5001843220 |
| HINO | 44080E0130 |
| IRISBUS | 0000155301 |
| IVECO | 182739 |
| IVECO | 42543259 |
| IVECO | 42544398 |
| IVECO | 42553666 |
| IVECO | 8010001984MO |
| KÄSSBOHRER | 21151102180 |
| KNORR-BREMSE | 0481026026 |
| LEYLAND DAF | 1342511 |
| MAN | 11017334 |
| MERCEDES-BENZ | 0044297844 |
| MERCEDES-BENZ | A0044296244 |
| NOOTEBOOM | 0307063 |
| NOOTEBOOM | 080705 |
| NOOTEBOOM | 307063 |
| PACCAR | 1525397 |
| RENAULT | 0044296244 |
| RENAULT | 20590781 |
| RENAULT | 5010588146 |
| SCANIA | 1935658 |
| SCANIA | 2090238 |
| SCANIA | 2090239 |
| TIRSAN | 21151102180 |
| VDL | 20235259 |
| VDL | 759010017 |
| VOLVO | 0044296244 |
| VOLVO | 20590781 |
| VOLVO | 5010588146 |
| VDL | 759010017 |
| VOLVO | 0044296244 |
| VOLVO | 20590781 |
| VOLVO | 5010588146 |
