| Calculated Volume (dm³) | 2.2656 |
| Calculated Weight (kg) | 0 |
| Comments | Port 4 90° rotated |
| GTIN | 04057877000516 |
| Max. operating pressure | 10.0 bar |
| Max. temporarily pressure | 13 bar |
| Mounting | 4x M8 |
| Opening pressure | 0.5 bar |
| Operating pressure | 10.0 bar |
| Ports | 1, 2: M22×1.5 Voss; 4: M16×1.5 Voss |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Predominance | 0.20 bar |
| Product category | Device |
| ProVia Warranty | 1 yıl |
| Regulating ratio | 1:1 |
| Response pressure | 0.20 bar |
| Silencer | Yes |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Version | Pressure reduction |
| Weight (kg) | 0.705 |

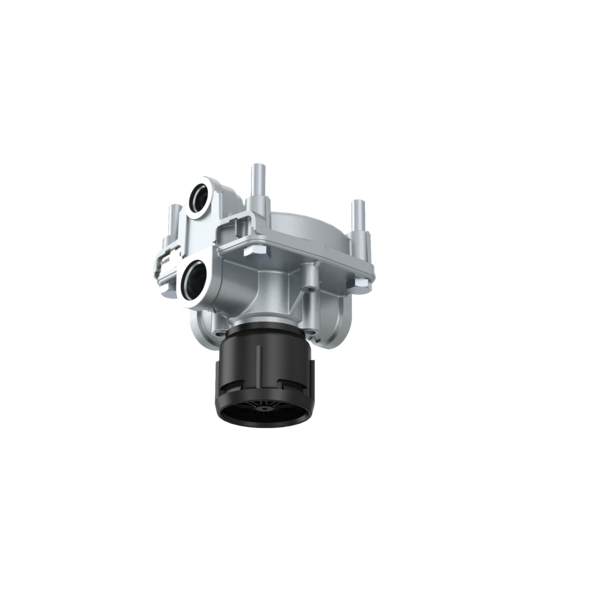

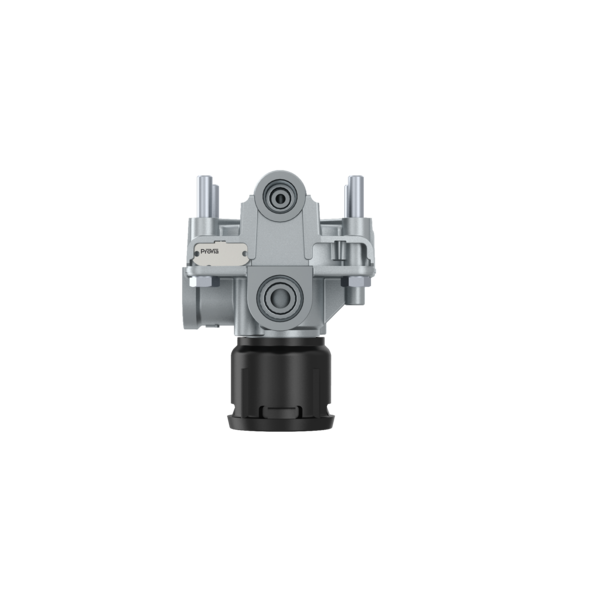

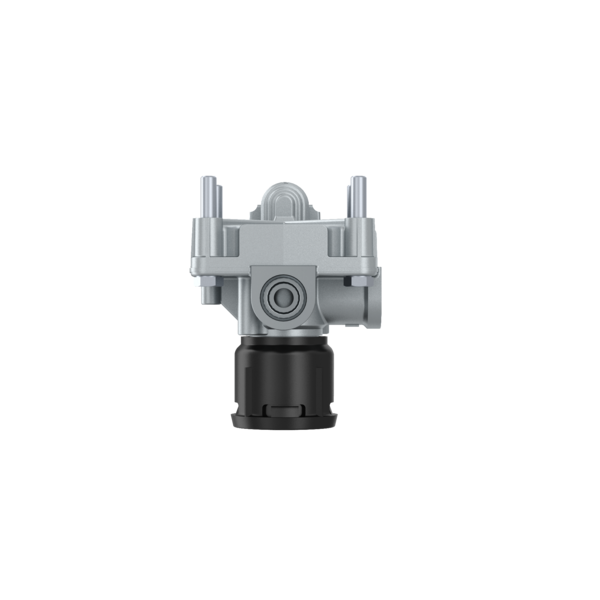

Röle valfi
Material Number: PRO0110080| Boyutlar (MM x MM x MM): | 125 x 145 x 125 |
| Ağırlık | 0.705 |
| GTIN | 04057877000516 |
Satın Al
Documents
| Assembly Guides | expl_pro0110080.tif | indir |
| Drawing | pro0110080____005_dascheck_d4_page-1---notset_tif.pdf | indir |
| Catalog | ProVia Ürün Kataloğu | indir |
Documents
| LEYLAND | 1703663 |
| LEYLAND DAF | 1703663 |
| LEYLAND DAF | ABRD876 |
| PACCAR | 1703663 |
