| Bolt lengths | 38.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 45 |
| Clevis pins | 12.5 mm |
| Distance between bolts | 120.7 mm |
| GTIN | 04057877073824 |
| Max. operating pressure | 10.0 bar |
| Port thread 11 | 3/8" - 18 NPTF |
| Port thread 12 | 3/8" - 18 NPTF |
| Product category | Device |
| Push-rod length | 210 mm |
| Push-rod thread | M16 x 1.5 |
| Release pressure | 4.8 bar |
| Return-spring force | 100 N |
| Stroke | 63.5 mm |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Total length | 319.0 mm |
| Type | 30/30-2.5'' |
| Type of operation | Cam |
| UPC | 193134011803 |
| Version | Without boot |
| Weight (kg) | 9.5 |
| Weight (lb) | 20.94 |

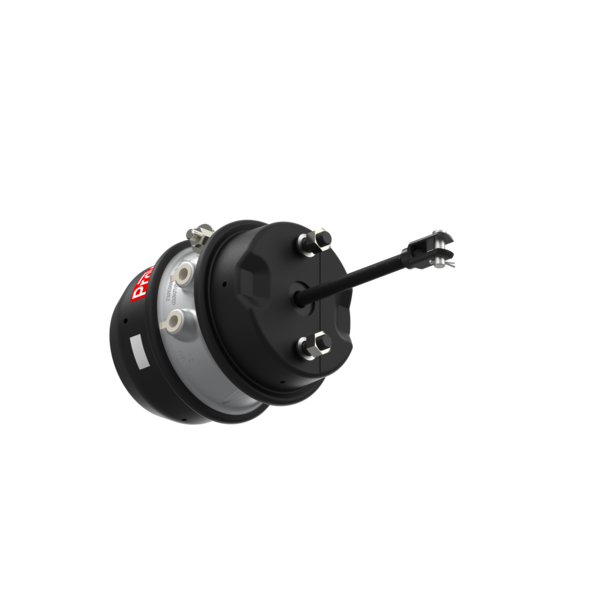

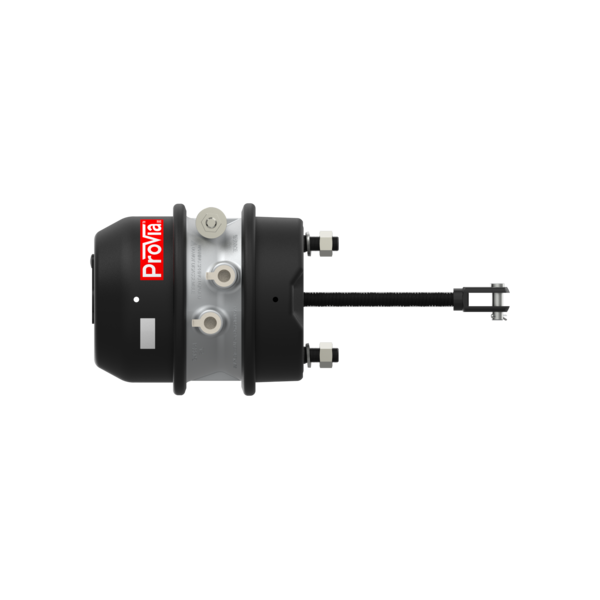

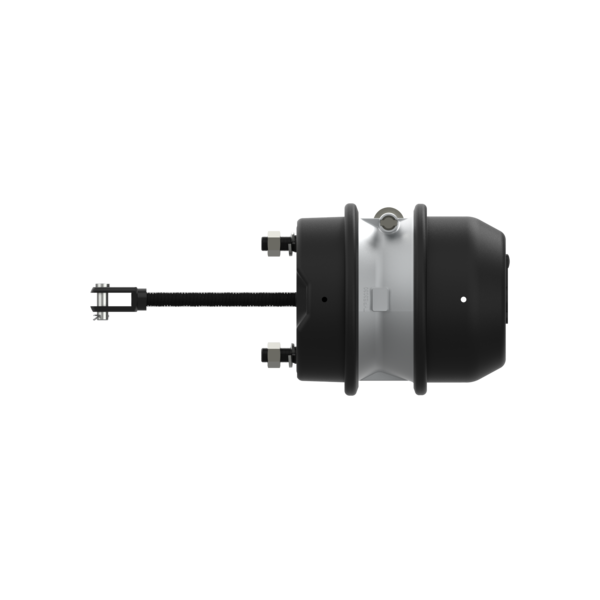

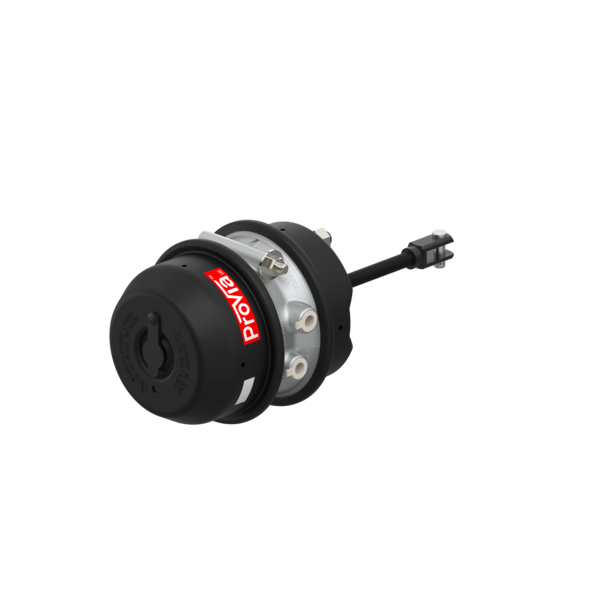

Double-Diaphragm Actuator cam
Material Number: PRO7120100| Sizes (MM x MM x MM): | 500 x 300 x 300 |
| Weight | 9.5 |
| GTIN | 04057877073824 |
Buy
Documents
| Drawing | outline drawing (doc 005) | download |
