| Bolt lengths | 42.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 18.54 |
| Calculated Weight (kg) | 0 |
| Clevis pins | 12.5 mm |
| Distance between bolts | 120.6 mm |
| GTIN | 04057877051198 |
| Max. operating pressure | 10.5/8.5 bar |
| Port angle | 90° |
| Port thread 11 | 3/8" - 18 NPTF |
| Port thread 12 | 3/8" - 18 NPTF |
| Product category | Device |
| ProVia warranty | 1 year |
| Push-rod length | 235 mm |
| Push-rod thread | Ball R8 |
| Release pressure | 5.5 bar |
| Return-spring force | 150 N |
| Stroke | 63.5 mm |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Total length | 178 mm |
| Type | 20/24 |
| Type of operation | Disc |
| UPC | 193134009862 |
| Weight (kg) | 7.5 |
| Weight (lb) | 16.53 |

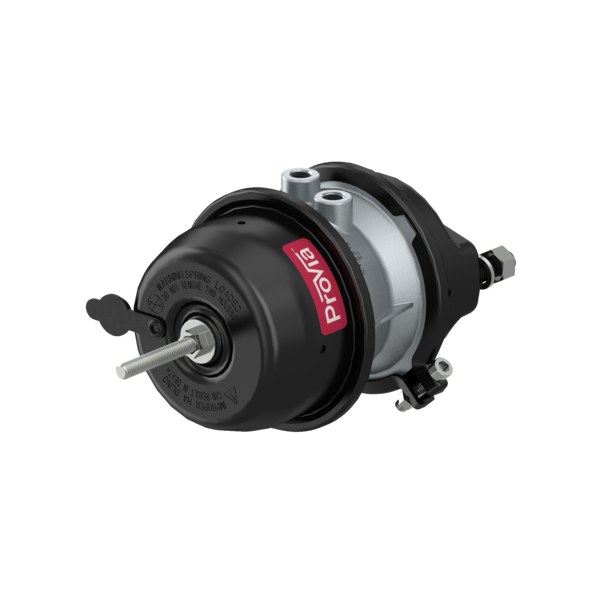

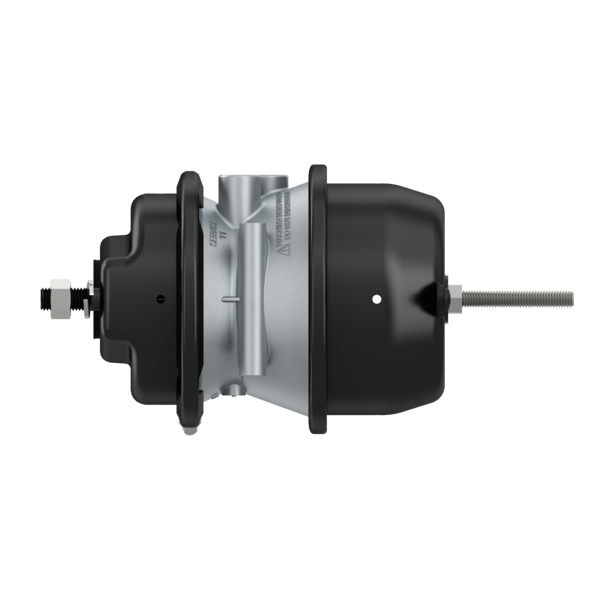

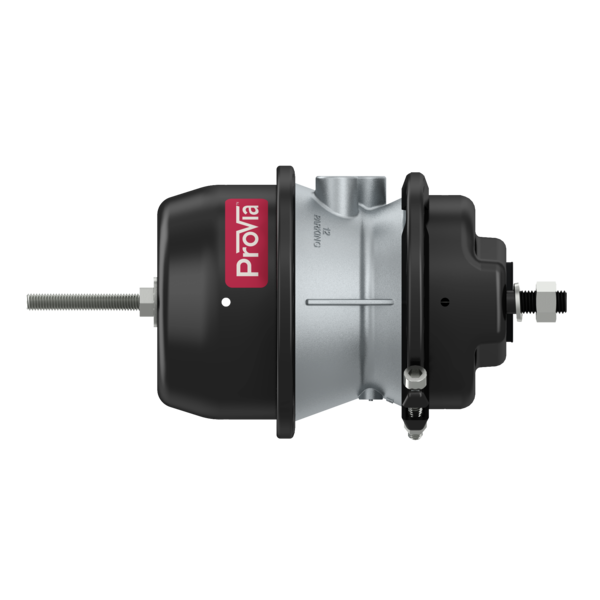

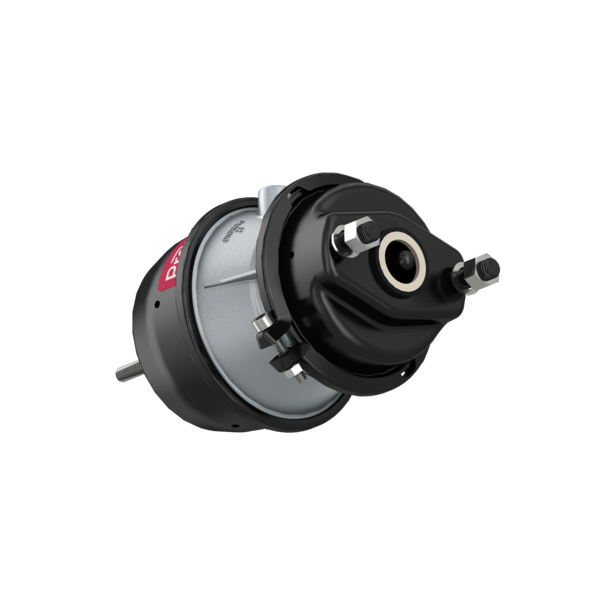

Double-Diaphragm Tristop 20/24
Material Number: PRO7120090| Sizes (MM x MM x MM): | 383 x 220 x 220 |
| Weight | 7.5 |
| GTIN | 04057877051198 |
Buy
Documents
| Drawing | outline drawing (doc 005) | download |
