| Bolt lengths | 37.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 17.82 |
| Calculated Weight (kg) | 0 |
| Certifications | SAE |
| Clamp Band | 249 mm |
| Clamp band position | 40° |
| Clevis pins | 12.5 mm |
| Distance between bolts | 120.6 mm |
| GTIN | 04057877003920 |
| Length | 231 mm |
| Max. operating pressure | 10.0 bar |
| Mounting bolt length | 37 mm |
| Mounting bolt thread | M16×1.5 |
| Operating pressure | 8.0 bar |
| Port thread | M16×1.5 |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Product category | Device |
| ProVia Warranty | 1 yıl |
| Push-rod length | 211 mm |
| Push-rod length + yoke | 211 mm |
| Push-rod thread | M16 x 1.5 |
| Release pressure | 4.7 bar |
| Return-spring force | 100 N |
| Size | 30 / 30 mm |
| Spring housing flange | 206 mm |
| Stroke | 63.5 mm |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Type | 30/30-2.5'' |
| Type of operation | Cam |
| UPC | 193134004027 |
| Version | Without boot |
| Weight (kg) | 9.1 |
| Weight (lb) | 20.06 |
| Yoke | Yes |

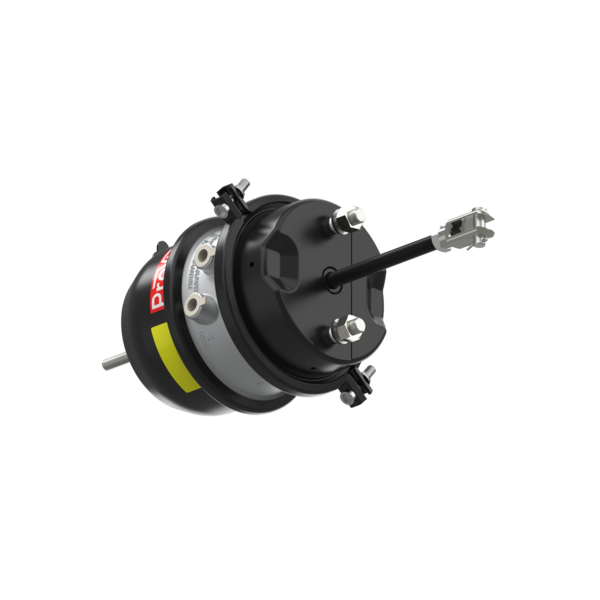

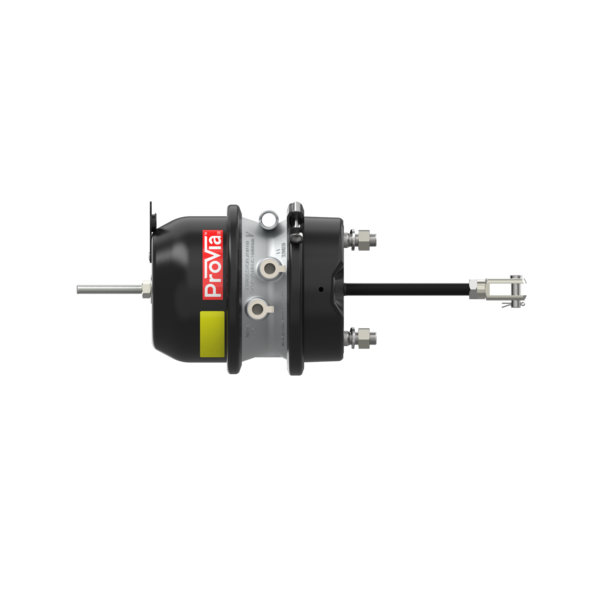

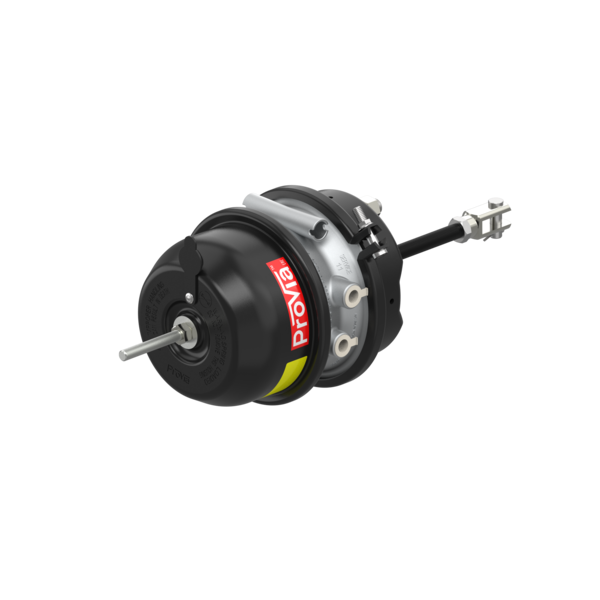

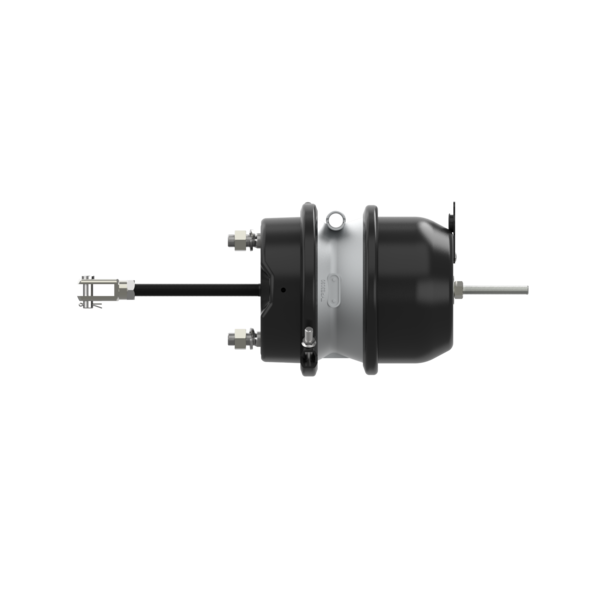

Double-Diaphragm Actuator Cam 30/30-2.5″
Material Number: PRO3922040| Boyutlar (MM x MM x MM): | 206 x 206 x 420 |
| Ağırlık | 9.1 |
| GTIN | 04057877003920 |
Satın Al
Documents
| Drawing | outline drawing (doc 005) | indir |
| Brochure | Outline Drawing (Doc 005) | indir |
| Catalog | provia_product-catalogue_en.pdf | indir |
