| Adjustable | Yes |
| Calculated Volume (dm³) | 1.1866 |
| Calculated Weight (kg) | 0 |
| Delivered pressure | 8.5 at p1 = 10.0 bar |
| Delivery pressure | 8.5 bar |
| Distance between bolts | 56.0 mm |
| Exhaust | Ø 4 mm |
| GTIN | 04057877001841 |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Ports | M22×1.5 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Product category | Device |
| ProVia Warranty | 1 yıl |
| Range of adjustment | 8.5 to 10.0 bar |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Vehicle Type | BUS, TRUCK, TRAILER, CAR, OFFHIGHWAY |
| Weight (kg) | 0.413 |

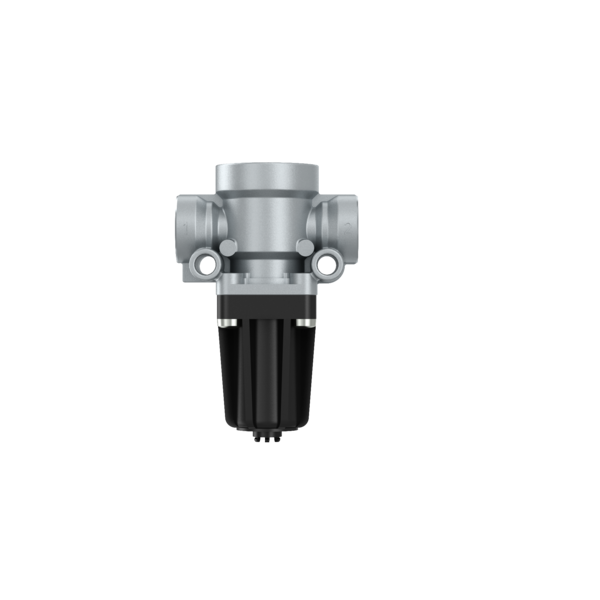

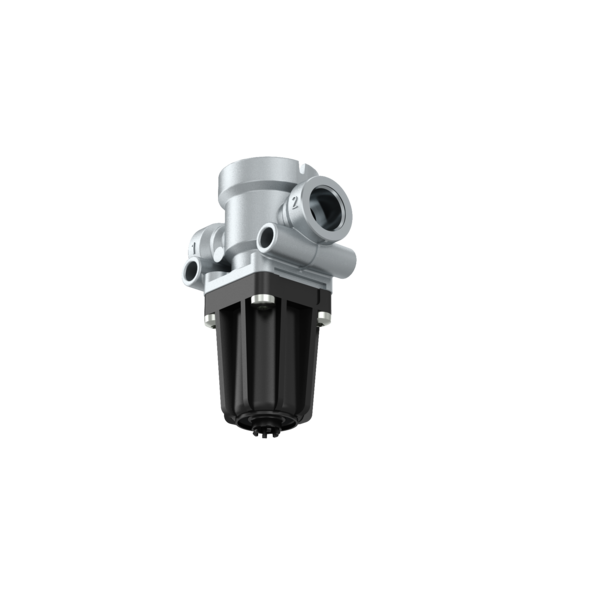

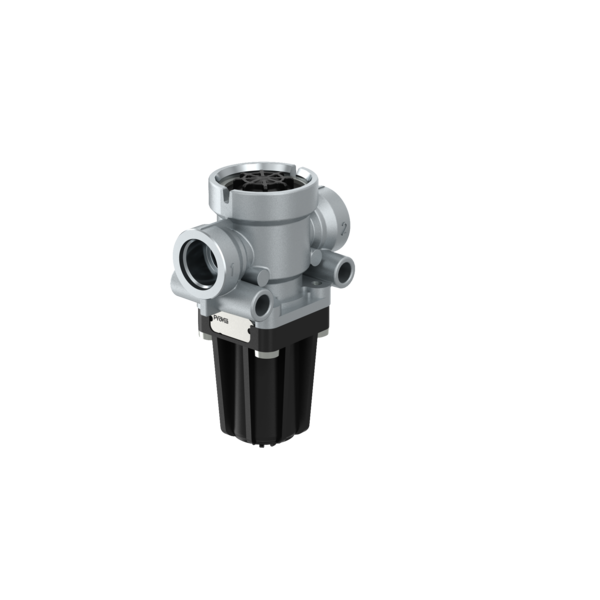

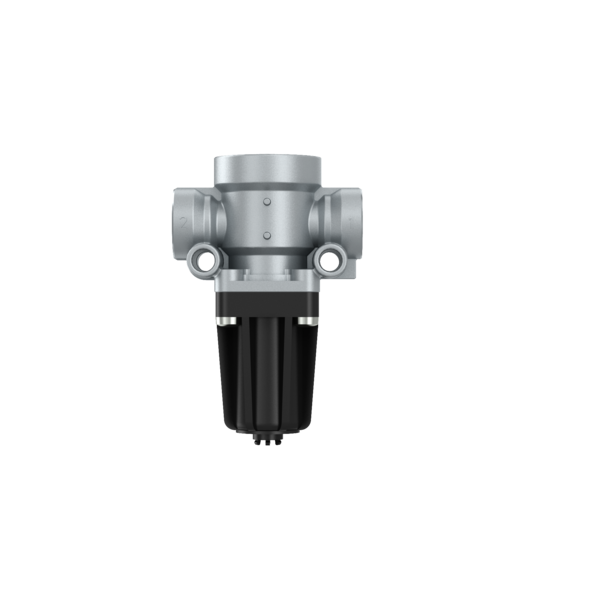

Basınç Sınırlayıcı Valf
Material Number: PRO0103000| Boyutlar (MM x MM x MM): | 180 x 103 x 64 |
| Ağırlık | 0.413 |
| GTIN | 04057877001841 |
Satın Al
Documents
| Drawing | pro0103000____005_dascheck_a5_page-1---notset_tif.pdf | indir |
| Catalog | ProVia Ürün Kataloğu | indir |
Documents
| ALEXANDER DENNIS | AB4750103007 |
| DAEWOO | 3454402440 |
| DAF | 1505392 |
| DAF | 1506191R |
| ERF | 1260667 |
| HYUNDAI | 59450 7C700 |
| HYUNDAI | 594507C700 |
| KING LONG | 235500910 |
| LANGENDORF | 1111697 |
| LEYLAND DAF | EXABRB320 |
| MAN | 1260667 |
| MAN | 4750103000 |
| MAN | 81521016269 |
| NEOPLAN | 81521016269 |
| OTOKAR | 9900040764 |
| PACCAR | 1505392 |
| PACCAR | 1506191R |
| SCANIA | 1935017 |
| SCHWARZMÜLLER | 85828 |
| VDL | 20297696 |
| VDL | 297696 |
