| Bolt lengths | 43.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 17.22 |
| Calculated Weight (kg) | 0 |
| Connection Port / Fitting | M22×1.5 / VOSS 232 |
| Connection Specification | JED-388-3 |
| Distance between bolts | 120.6 mm |
| GTIN | 04057877001919 |
| Max. operating pressure | 10.0/8.5 bar |
| Output force service brake | 7.7 kN |
| Output force spring brake | 5.5-10 kN |
| Port: Working pressure [P emax.] | 11: 10 bar (13 bar), 12: 8.5 bar (11 bar) |
| Port thread 11 | M22 x 1.5 |
| Product category | Device |
| ProVia Warranty | 1 yıl |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Release pressure | 4.9 bar |
| Return-spring force | 220 N |
| Stroke | 65/65 mm |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Total length | 286.0 mm |
| Type | 20/24 |
| Type of operation | Disc |
| UPC | 193134005369 |
| Weight (kg) | 9.56 |
| Weight (lb) | 21.08 |

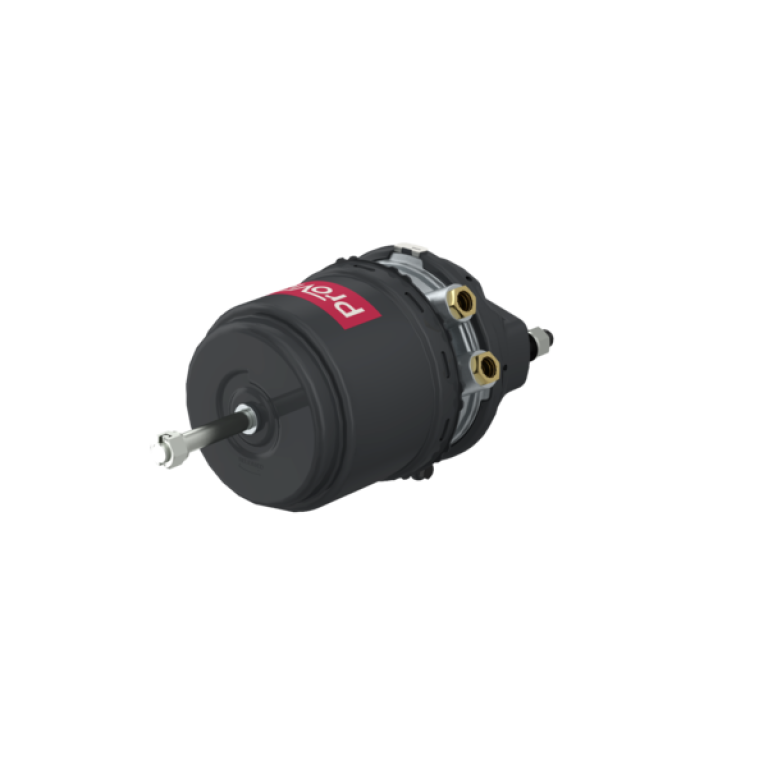

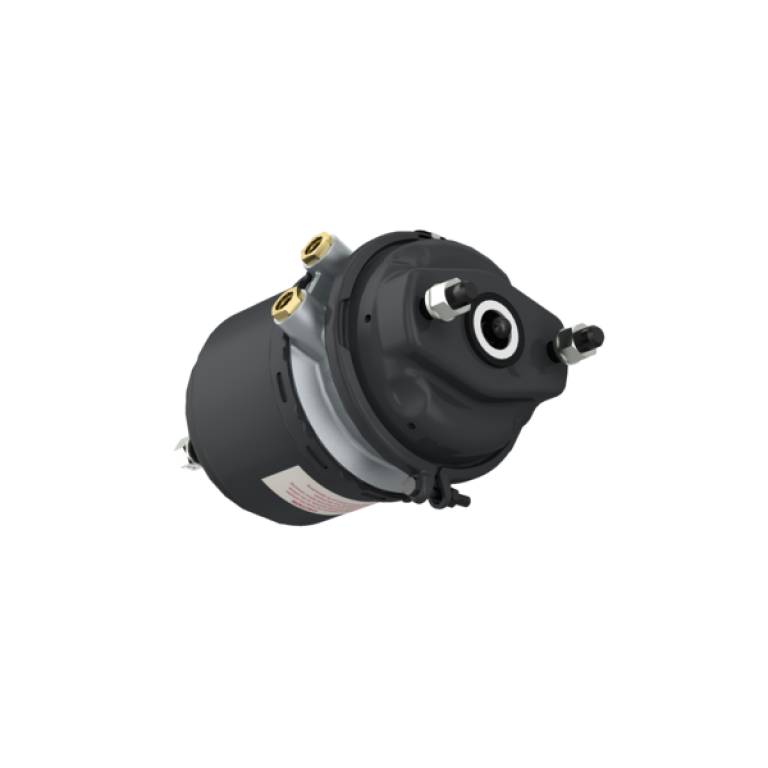

Spring Brake Actuator DISC 20/24-65mm
Material Number: PRO4800100| Boyutlar (MM x MM x MM): | 400 x 210 x 205 |
| Ağırlık | 9.56 |
| GTIN | 04057877001919 |
Satın Al
Documents
| Drawing | pro4800100____005_dascheck_c6_page-1---notset_tif.pdf | indir |
| Catalog | ProVia Ürün Kataloğu | indir |
Documents
| DAF | 1506681 |
| DAF | 1519442 |
| DAF | 1524581 |
| DAF | 1530832 |
| DAF | 1530833 |
| MERCEDES-BENZ | 0154207518 |
| MERCEDES-BENZ | 0154207618 |
| MERCEDES-BENZ | 0154208518 |
| MERCEDES-BENZ | 0154208618 |
| MERCEDES-BENZ | 0204204918 |
| MERCEDES-BENZ | 0204205018 |
| MERCEDES-BENZ | A0154208618 |
| MERCEDES-BENZ | A0204203318 |
| MERCEDES-BENZ | A0204203418 |
| MERCEDES-BENZ | A0204203518 |
| MERCEDES-BENZ | A0204203618 |
| MERCEDES-BENZ | A0204204918 |
| MERCEDES-BENZ | A0204205018 |
| MERCEDES-BENZ | A0214209718 |
| MERCEDES-BENZ | A0214209818 |
| PACCAR | 1524581 |
| ROSENBAUER | 542529 |
| ROSENBAUER | 542530 |
| SCANIA | 2131116 |
