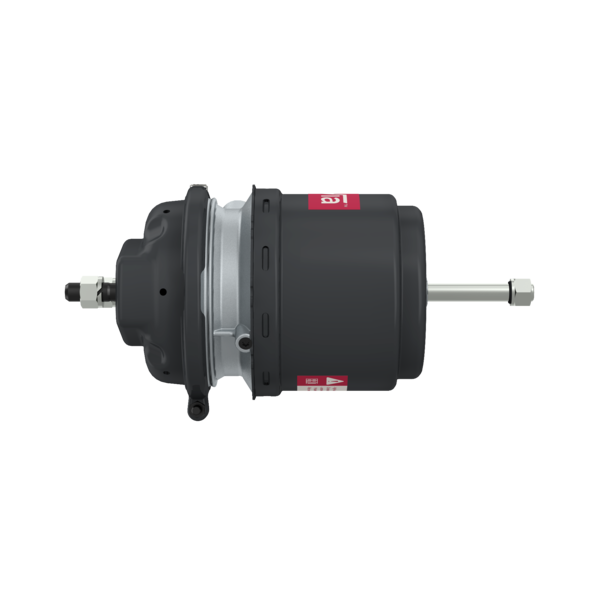

Spring Brake Actuator DISC 20/24-65mm

Material Number: PRO4800100

Sizes (MM x MM x MM): 400 x 210 x 205
Weight 9.56
GTIN 04057877001919


Buy
Bolt lengths43 mm
Bolt threadsM16 x 1.5
Calculated Volume (dm³)17.22
Connection Port / FittingM22×1.5 / VOSS 232
Connection SpecificationJED-388-3
Distance between bolts120.7 mm
GTIN04057877001919
Max. operating pressure10.0/8.5 bar
Output force service brake (7.7
Output force spring brake (k5.5-10
Port: Working pressure [P em11: 10 bar (13 bar), 12: 8.5 bar (11 bar)
Port thread 11M22 x 1.5
Product CategoryCN
ProVia Warranty1 year
Push-rod length15 mm
Push-rod threadBall R8
Release pressure4.9 bar
Return-spring force220 N
Stroke65/65 mm
Technical SpecificationAM specification
Temperature range-40°C to +80°C
Total length286 mm
Type20/24
Type of operationDisc
Weight (kg)9.56
