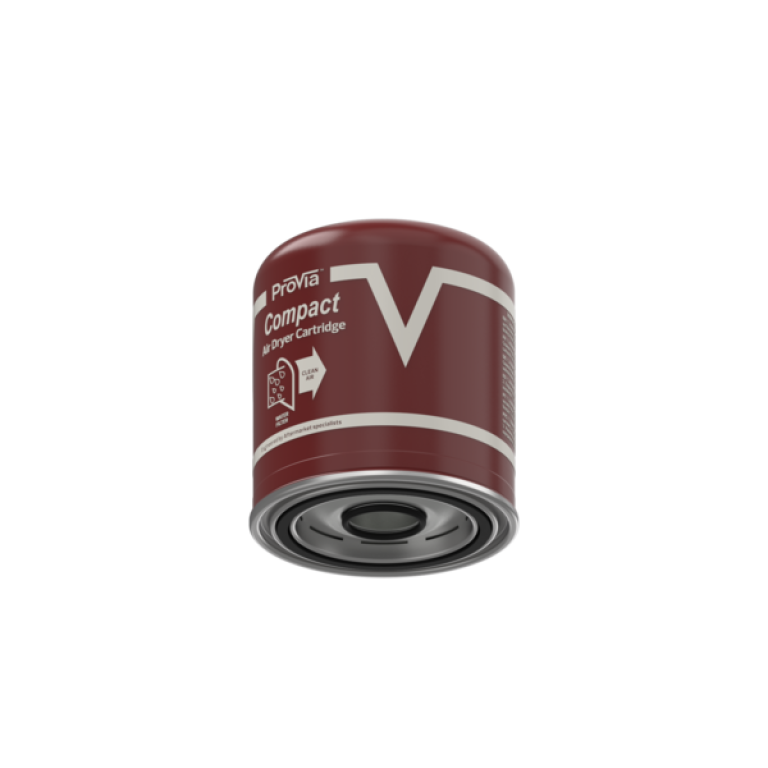

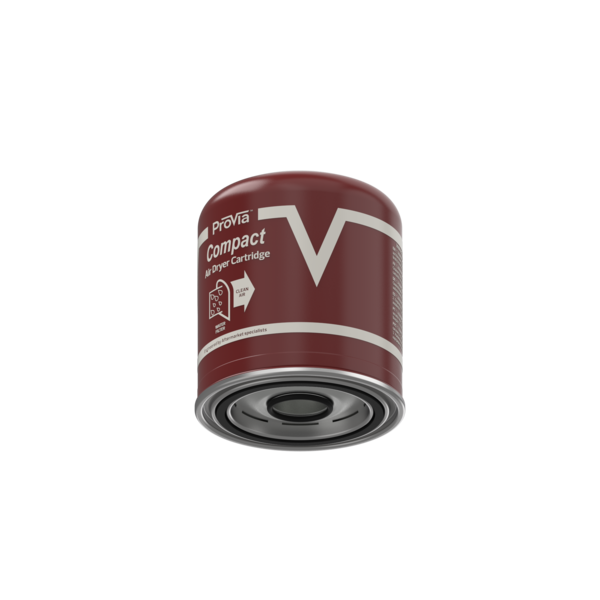

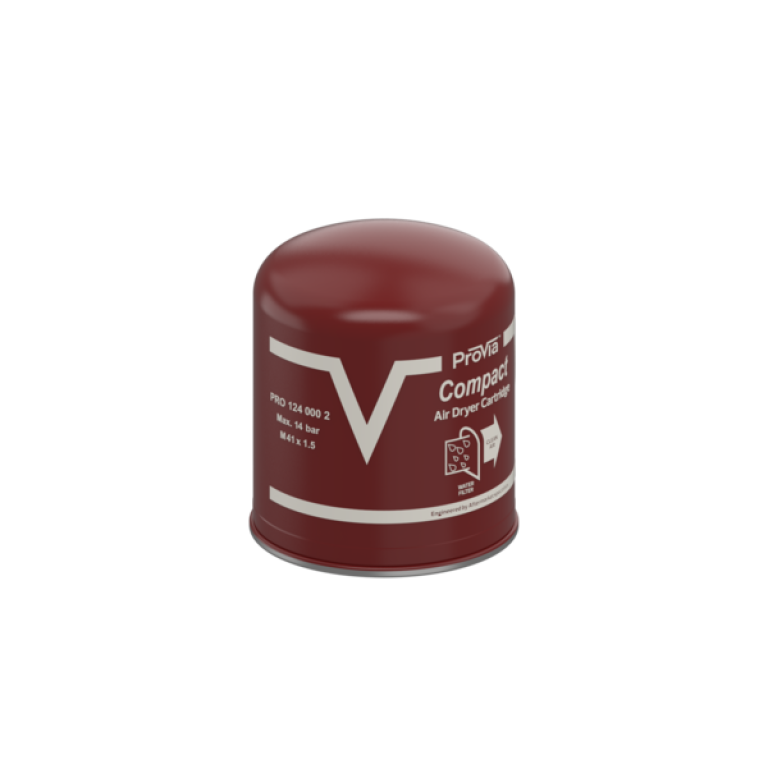

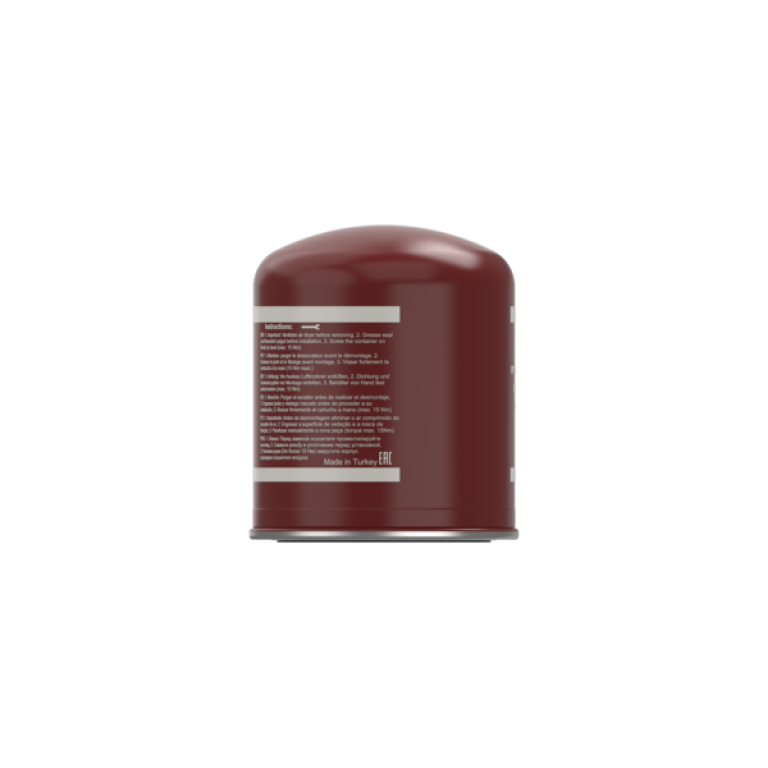

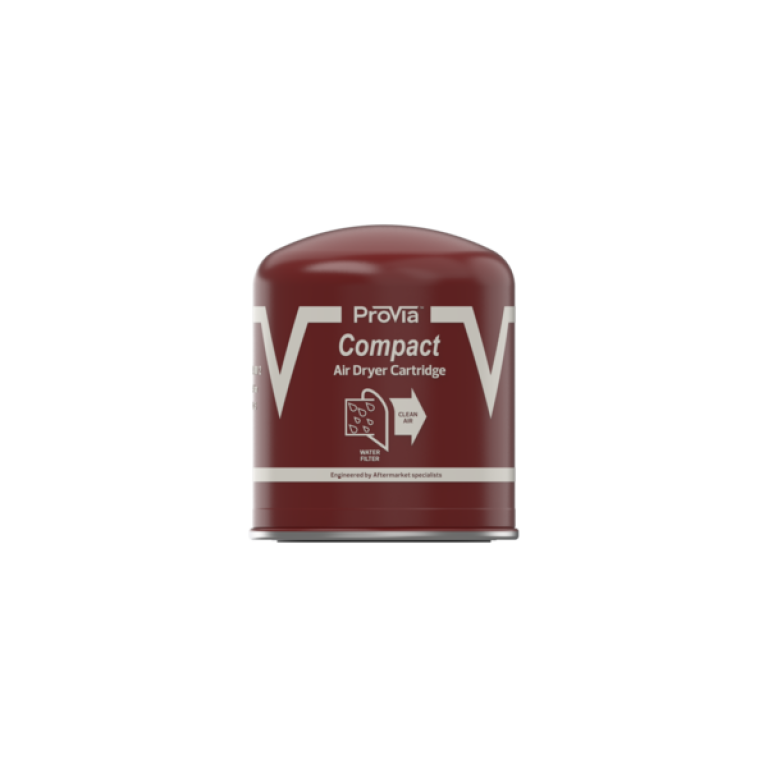

Air Dryer Cartridge, compressed-air system

Material Number: PRO1240002

Sizes (MM x MM x MM): 136 x 142 x 136
Weight 2
GTIN 04057877028626
Category:


Buy
Calculated Volume (dm³)2.626
Calculated Weight (kg)0
ColorRed
CommentsPlease check if the cartridge performance is suitable for your specific vehicle
Filter contentsDesiccant
GTIN04057877028626
Max. operating pressure14.0 bar
Port threadsM41 x 1.5
Product categoryComponent
ProVia warranty1 year
Recommended service intervalUp to 6 months system protection
Technical specificationAM specification
TypeNorm
UPC193134007424
Weight (kg)2
Weight (lb)4.409

Documents

Brochure New among cartridges download
Drawing Outline Drawing (Doc 005) download
Catalog ProVia Product Catalog download

Documents

DAF 1391510
DAF 1439553
KNORR-BREMSE II41300F
LEYLAND DAF 1391510
SCANIA SP1037105
