| Calculated Volume (dm³) | 6.316 |
| Calculated Weight (kg) | 0 |
| Cartridge type | Desiccant Cartridge |
| Cut-out pressure | 12.5±0.3 bar |
| Exhaust | JED-463-1 |
| GTIN | 04057877002718 |
| Heater | PRO 410 920 2 |
| Important information | Compatible with Provia heater only. |
| Max. operating pressure | 13.0 bar |
| Operational range | 1.5 ±0.5 bar |
| Ports | 1, 21, 22: M22 x 1.5 |
| Port thread 3 | JED-463-1 |
| Port thread 4/23 | 1/4" - 18 NPTF |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Product category | Device |
| ProVia warranty | 1 year |
| Technical specification | AM specification |
| Temperature range | -40°C to +65°C |
| UPC | 193134005062 |
| Weight (kg) | 3.5 |
| Weight (lb) | 7.716 |

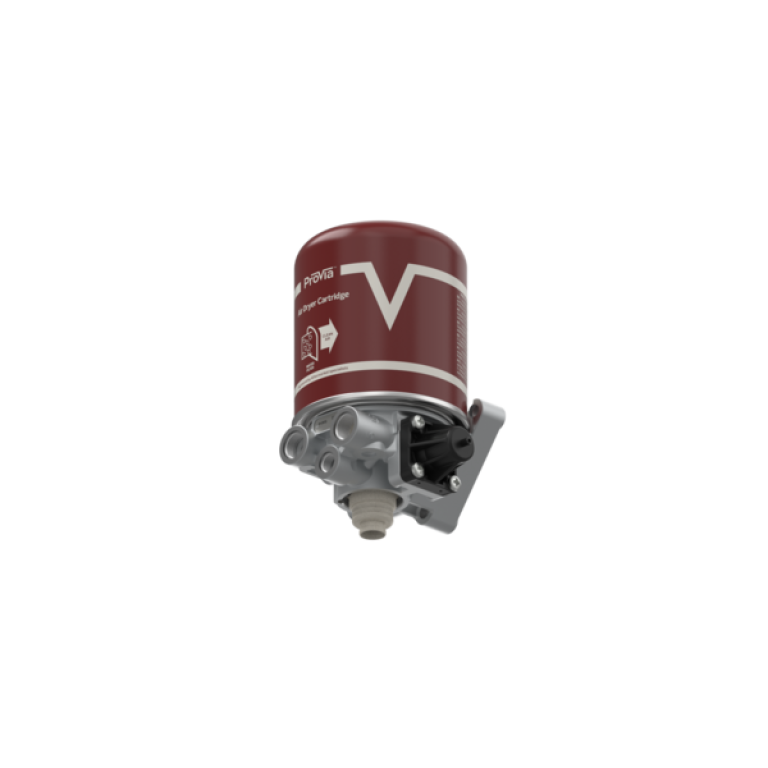

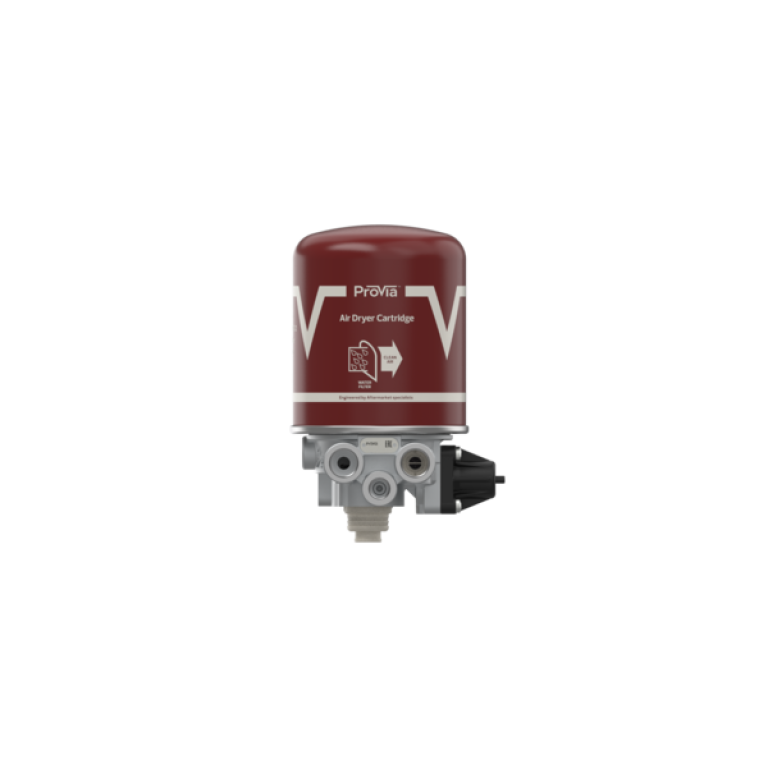

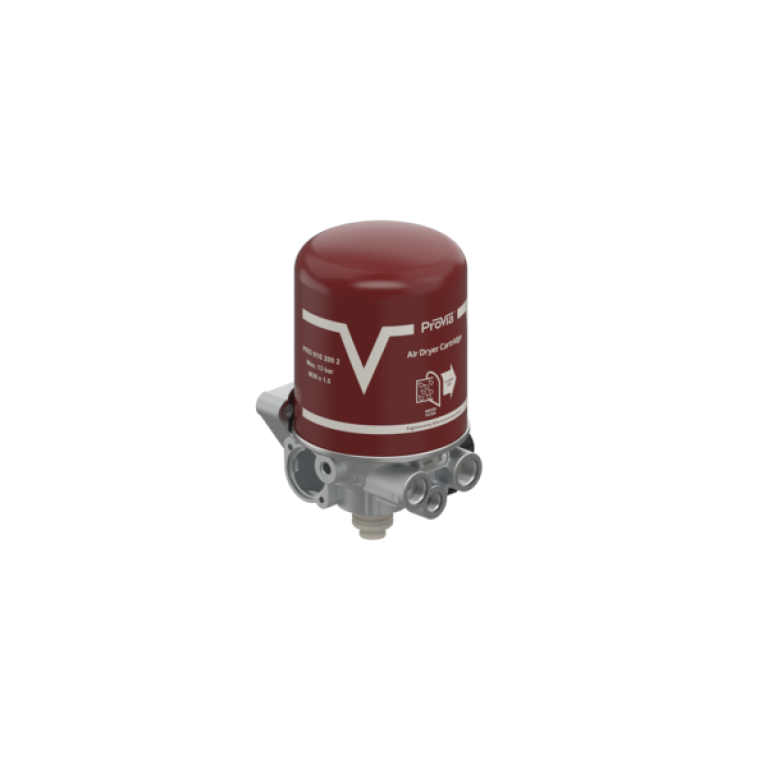

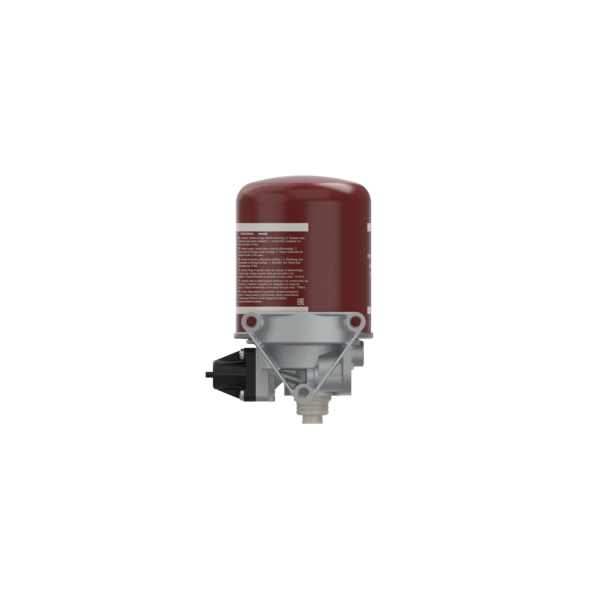

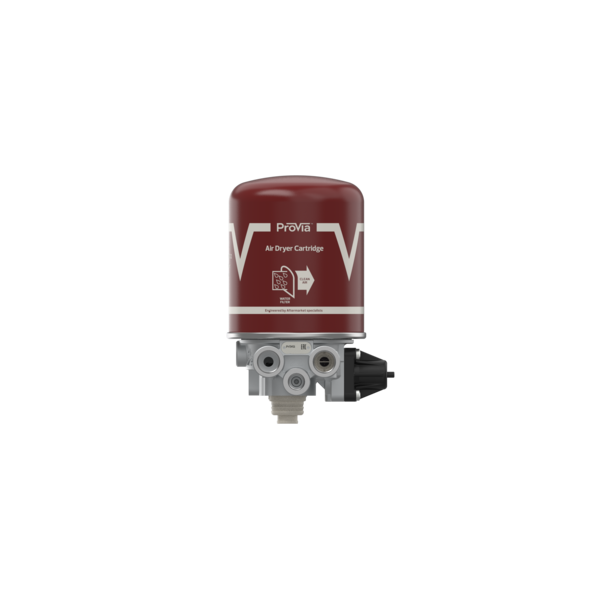

Air Dryer
Material Number: PRO4100010| Sizes (MM x MM x MM): | 136 x 180 x 258 |
| Weight | 3.5 |
| GTIN | 04057877002718 |
Buy
Documents
| Assembly Guides | expl_pro4100010.tif | download |
| Drawing | Outline Drawing (Doc 005) | download |
| Catalog | ProVia Product Catalog | download |
Documents
| MAN | 2V5607373C |
| MAN | 81521026209 |
| MAN | 81521026219 |
| MAN | 81521026223 |
| MAN | 81521026367 |
| MAN | 81521026368 |
| MAN | 81521026369 |
| MAN | 81521026399 |
| NEOPLAN | 81521026368 |
