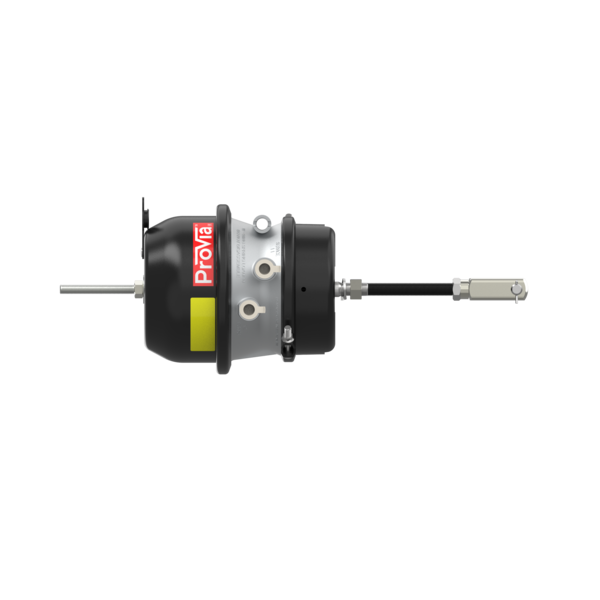

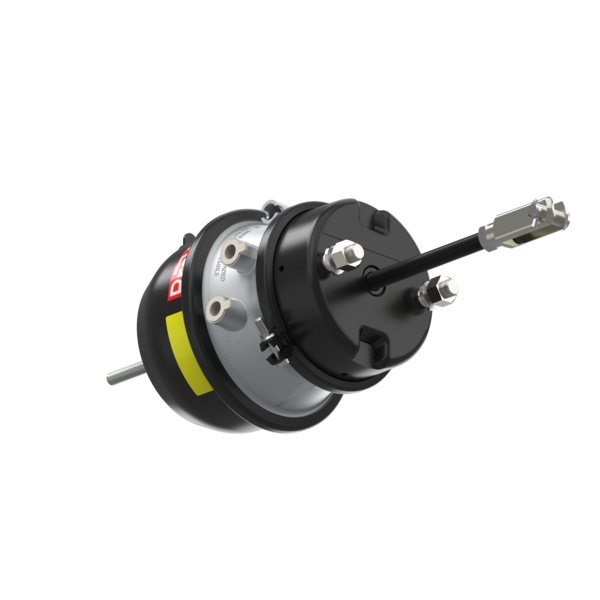

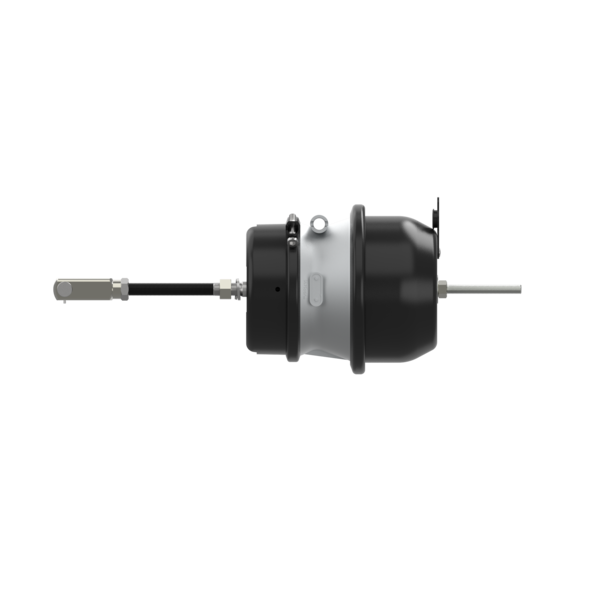

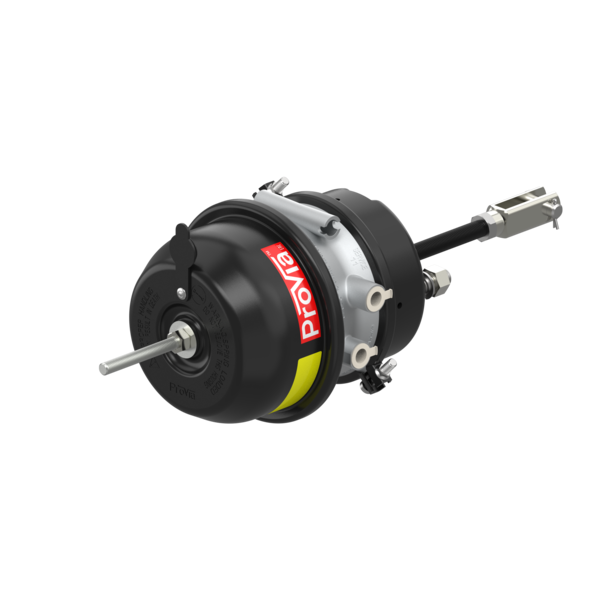

Double-Diaphragm Actuator Cam 24/30 2.5″

Material Number: PRO7120190

Sizes (MM x MM x MM): 550 x 250 x 225
Weight 8.5
GTIN 04057877006235


Buy
Bolt lengths38.0 mm
Bolt threadsM16 x 1.5
Calculated Volume (dm³)30.94
Calculated Weight (kg)0
CertificationsSAE
Clamp band230 mm
Clamp band position45°
Clevis pins12.5 mm
Distance between bolts120.6 mm
GTIN04057877006235
Length234 mm
Max. operating pressure10.0 bar
Mounting bolt length38 mm
Mounting bolt threadM16×1.5
Operating pressure8.0 bar
Port threadM16×1.5
Port thread 11M16 x 1.5
Port thread 12M16 x 1.5
Product categoryDevice
ProVia warranty1 year
Push-rod length222 mm
Push-rod length + yoke222 mm
Push-rod threadM16 x 1.5
Release pressure4.7 bar
Return-spring force100 N
Size24 / 30 mm
Spring housing flange208.5 mm
Stroke63.5 mm
Technical specificationAM specification
Temperature range-40°C to +80°C
Type24/30-2.5''
Type of operationCam
UPC193134005475
VersionWithout boot
Weight (kg)8.5
Weight (lb)18.74
YokeYes

Documents

Brochure ProVia Product Brochure for Chinese vehicle applications download
Drawing Outline Drawing (Doc 005) download
Catalog ProVia Product Catalog download
