| Calculated Volume (dm³) | 5.376 |
| Calculated Weight (kg) | 0 |
| Cartridge type | Desiccant Cartridge |
| Cut-out pressure | 9.1±0.3 bar |
| Exhaust | JED-463-1 |
| GTIN | 04057877004576 |
| Heater | - |
| Important information | Compatible with Provia heater only. |
| Max. operating pressure | 13.0 bar |
| Operational range | 1.3 ±0.4 bar |
| Ports | 1, 21, 22: M22 x 1.5; 4, 23: M12×1.5 |
| Port thread 3 | JED-463-1 |
| Port thread 4/23 | 1/4" - 18 NPTF |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Product category | Device |
| ProVia warranty | 1 year |
| Technical specification | AM specification |
| Temperature range | -40°C to +65°C |
| UPC | 193134005208 |
| Weight (kg) | 3.723 |
| Weight (lb) | 8.208 |

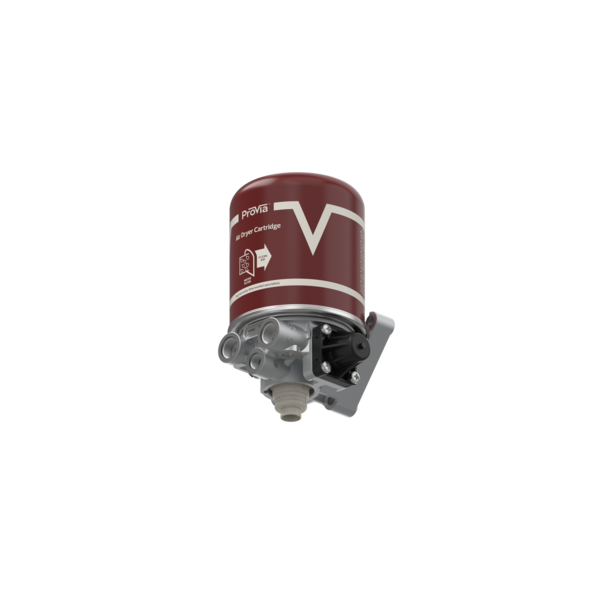

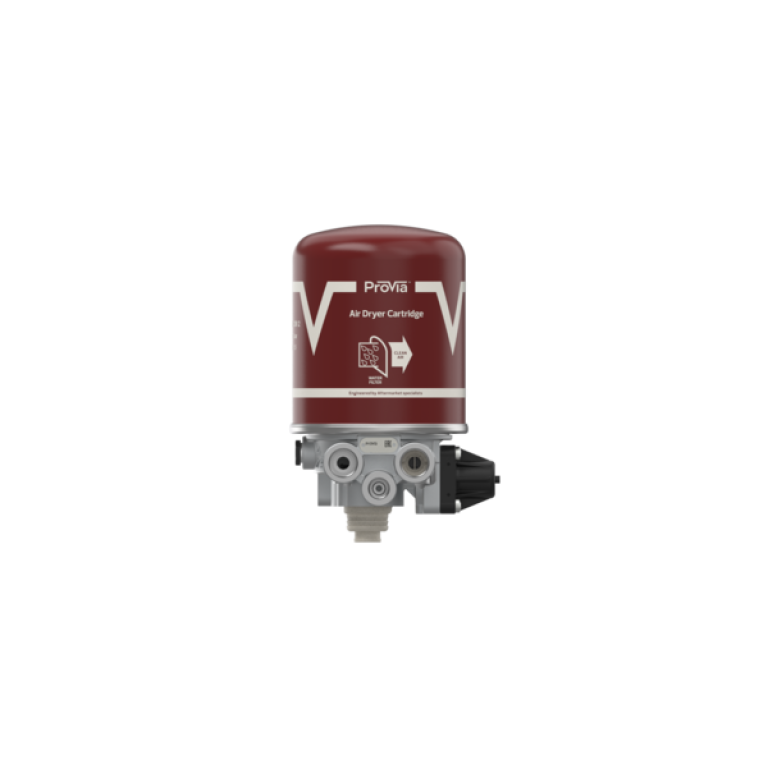

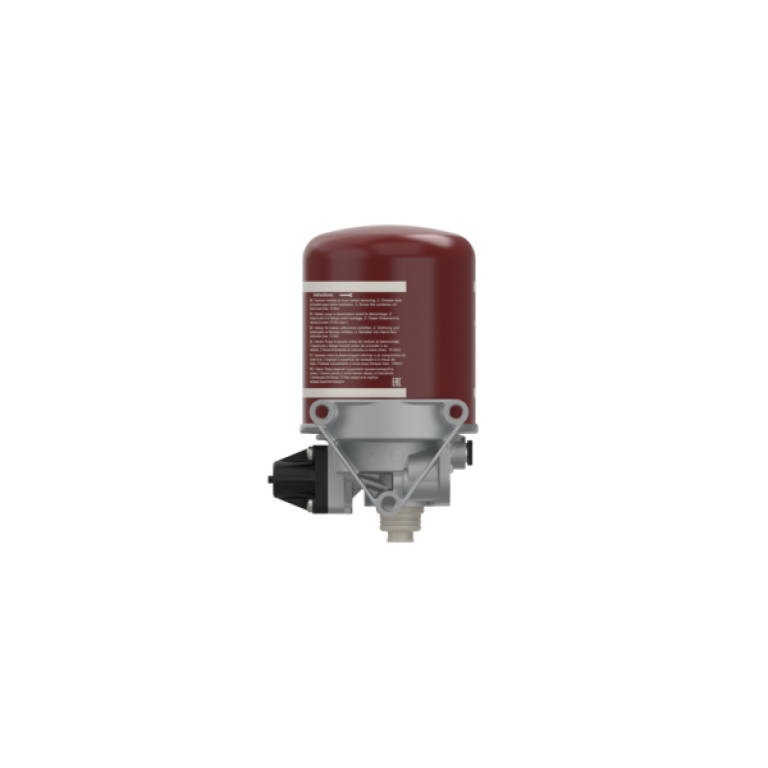

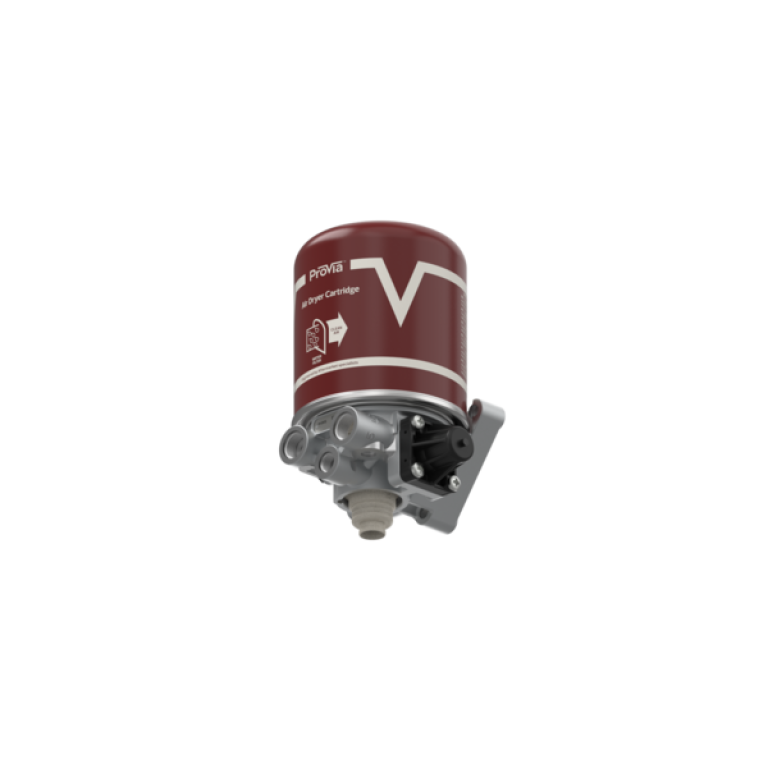

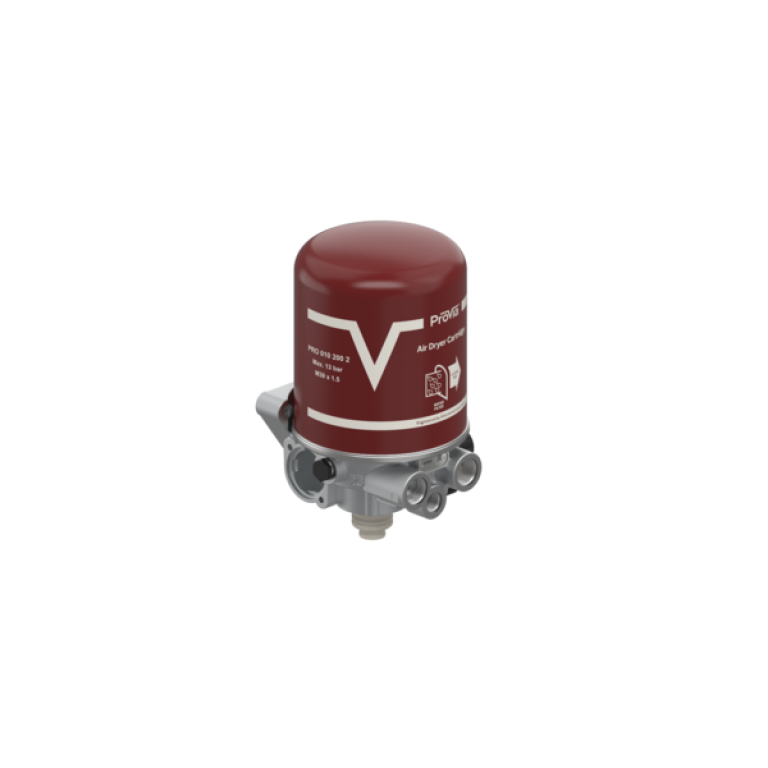

Single-Chamber Air Dryer
Material Number: PRO4100020| Sizes (MM x MM x MM): | 240 x 160 x 140 |
| Weight | 3.723 |
| GTIN | 04057877004576 |
Buy
Documents
| Assembly Guides | expl_pro4100020.tif | download |
| Drawing | Outline Drawing (Doc 005) | download |
| Catalog | ProVia Product Catalog | download |
Documents
| MAN | 2T0607373B |
| MAN | 2T0607373F |
| VW | 2T0607373B |
| VW | 2T0607373F |
