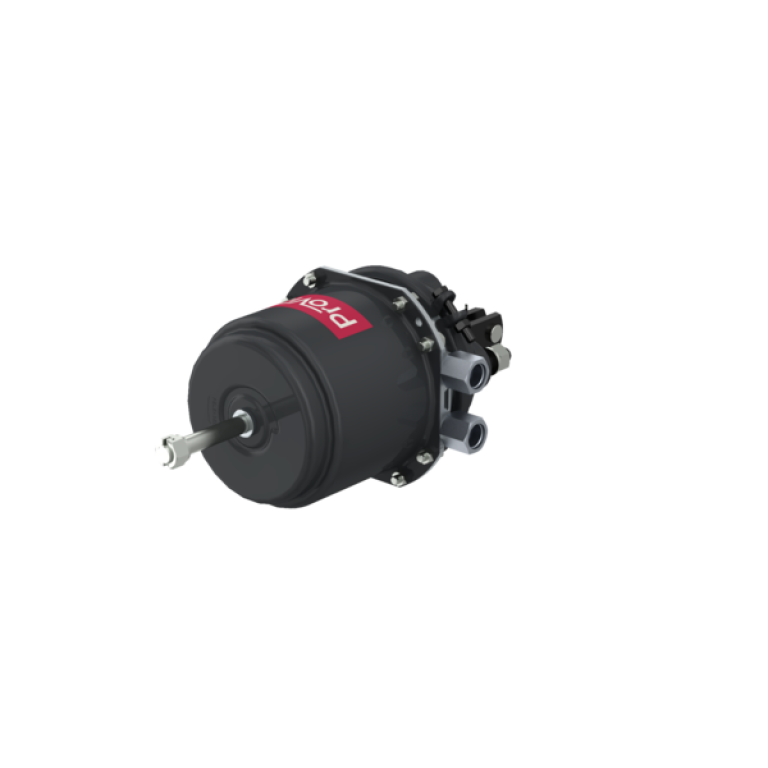

Spring Brake Actuator CAM 20/24-57mm

Material Number: PRO4200010

Sizes (MM x MM x MM): 435 x 210 x 190
Weight 9.877
GTIN 04057877001926


Buy
Bolt lengths39.5 mm
Bolt threadsM16 x 1.5
Calculated Volume (dm³)17.36
Clevis pins14 mm
Connection Port / FittingM22×1.5 / M22×1.5
Connection SpecificationJED-388-0
Distance between bolts120.6 mm
GTIN04057877001926
Max. operating pressure10.0/8.5 bar
Output force service brake (7.8
Output force spring brake (k6.8-11
Port: Working pressure [P em11 / 12: 10 bar (13 bar)
Port thread 11M22 x 1.5 JED-388
Product CategoryCN
ProVia Warranty1 year
Push-rod length78 mm
Push-rod length without yoke45.8 mm
Push-rod threadM16 x 1.5
Release pressure5.5 bar
Stroke57/57 mm
Technical SpecificationAM specification
Temperature range-40°C to +80°C
Total length265 mm
Type20/24
Type of fixing yokeWelded: 895 801 770 4
Type of leverCross lever
Type of operationCam
VersionWithout boot
Weight (kg)9.877
YokeScrewed
