| Calculated Volume (dm³) | 11.12 |
| Calculated Weight (kg) | 0 |
| Certifications | SAE |
| Clamp Band | 249 mm |
| Clamp band position | 45° |
| GTIN | 04057877003883 |
| Length | 231 mm |
| Max. operating pressure | 10.0 bar |
| Mounting bolt length | 37.08 mm |
| Mounting bolt thread | 5/8-11 UNC2A |
| Port thread | 3/8-18 NPTF |
| Product category | Device |
| ProVia Warranty | 1 yıl |
| Push-rod length | 25.4 mm |
| Push-rod length + yoke | 57 mm |
| Push-rod thread | 5/8" - 18 UNF - 2A |
| Size | 30 / 30 mm |
| Spring housing flange | 206 mm |
| Stroke | 63.5 mm |
| Technical specification | AM specification |
| Weight (kg) | 9.13 |
| Yoke | Yes |

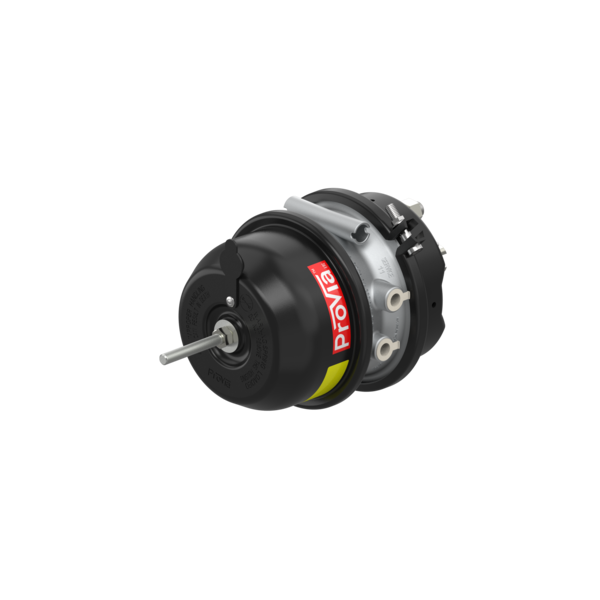

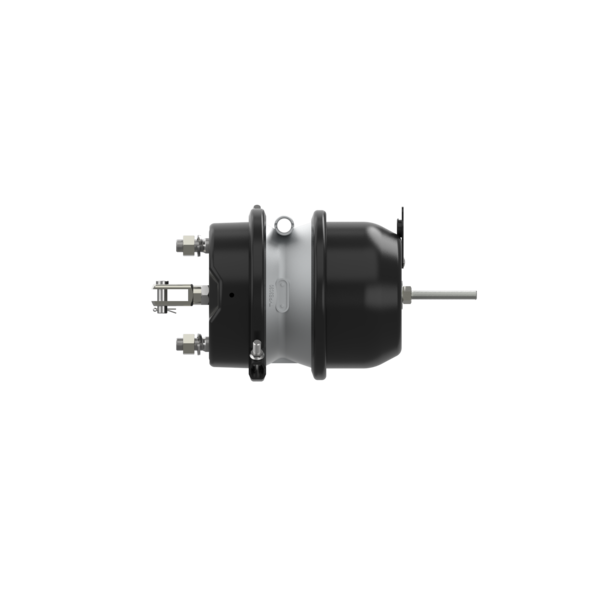

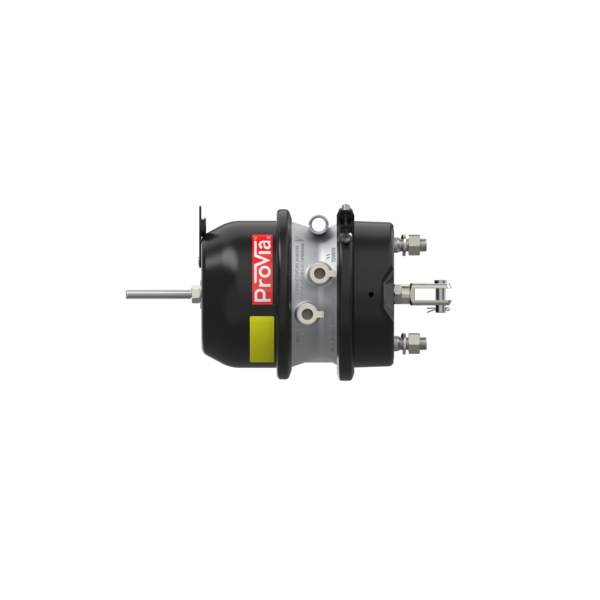

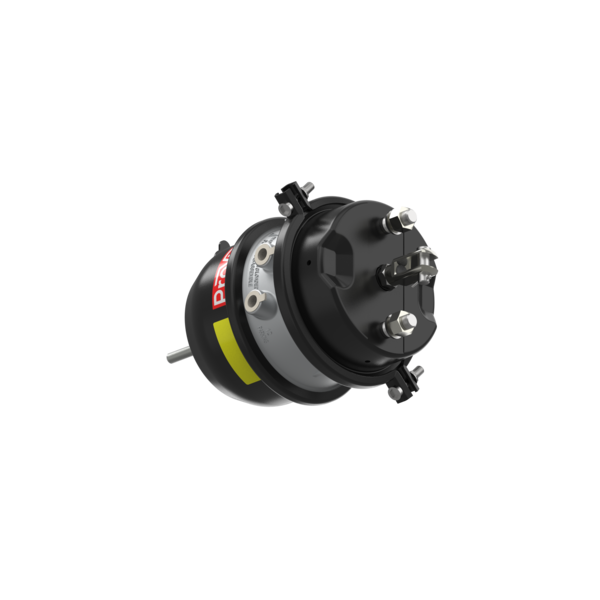

Double-Diaphragm Actuator Cam 30/30-2.5″
Material Number: PRO3932000| Boyutlar (MM x MM x MM): | 206 x 206 x 262 |
| Ağırlık | 9.13 |
| GTIN | 04057877003883 |
Satın Al
Documents
| Catalog | provia_product-brochure-for-chinese-applications_en.pdf | indir |
| Drawing | Outline Drawing (Doc 005) | indir |
| Catalog | provia_product-catalogue_en.pdf | indir |
