| Actuation Angle | -19° to +19° |
| Body material | Plastic |
| Calculated Volume (dm³) | 0.882 |
| Calculated Weight (kg) | 0 |
| Distance between holes | 46.4 mm |
| Fixing length (body + lever) | 177 mm |
| GTIN | 04057877003166 |
| Length | R 201 mm |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Ports | Push in fitting Ø 6 |
| Port thread 1 | Quick Connection Ø 6 mm |
| Port thread 2 | Quick Connection Ø 6 mm |
| Product category | Device |
| ProVia Warranty | 1 yıl |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Type | With Lever |
| Type of lever fixing | 1 fixing hole |
| Type of operation | Hole-lever Ø 6.5 mm |
| Version | With one-way valve |
| Weight (kg) | 0.255 |

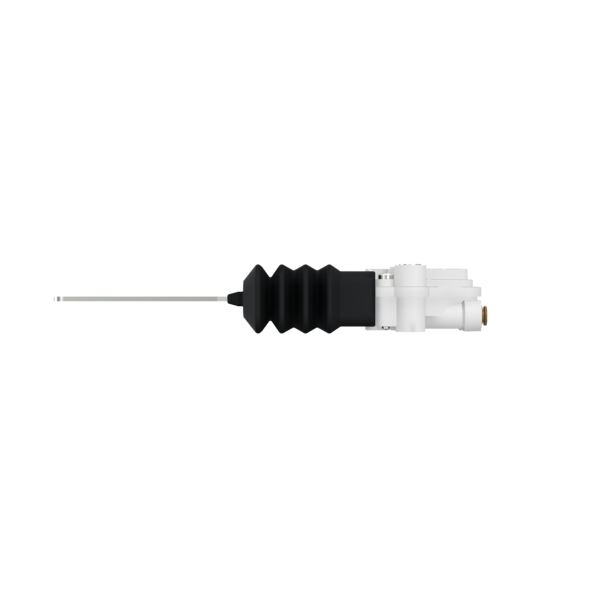

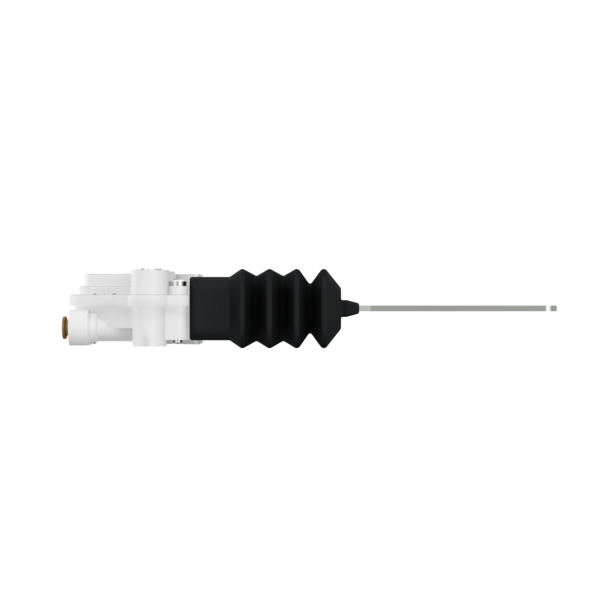

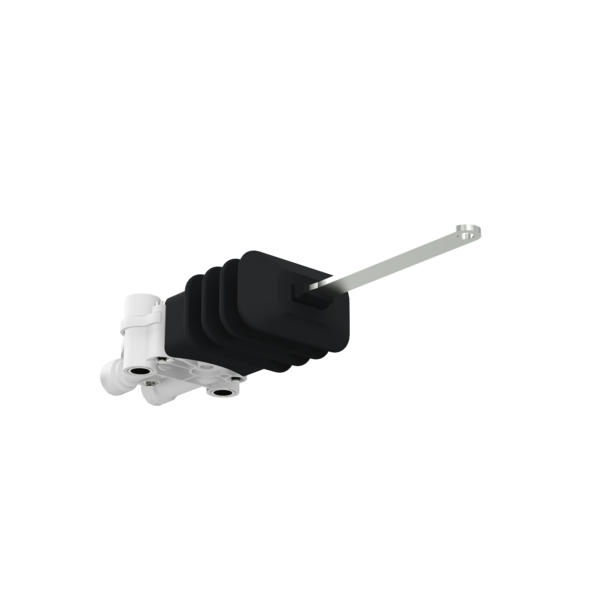

Seviye Valfi
Material Number: PRO0070300| Boyutlar (MM x MM x MM): | 245 x 80 x 45 |
| Ağırlık | 0.255 |
| GTIN | 04057877003166 |
Satın Al
Documents
| Catalog | provia_product-brochure-for-chinese-applications_en.pdf | indir |
| Catalog | provia_product-catalogue_en.pdf | indir |
| Drawing | outline drawing (doc 005) | indir |
Documents
| BEIBEN | 1288910046 |
| CAMC | 50H08-01060 |
| FAW | 5001075CA/01-C00/B |
| FAW | 5001075CA01/A |
| SINOTRUK (CNHTC) | WG1642440051/1 |
| SINOTRUK (CNHTC) | WG16424400511 |
