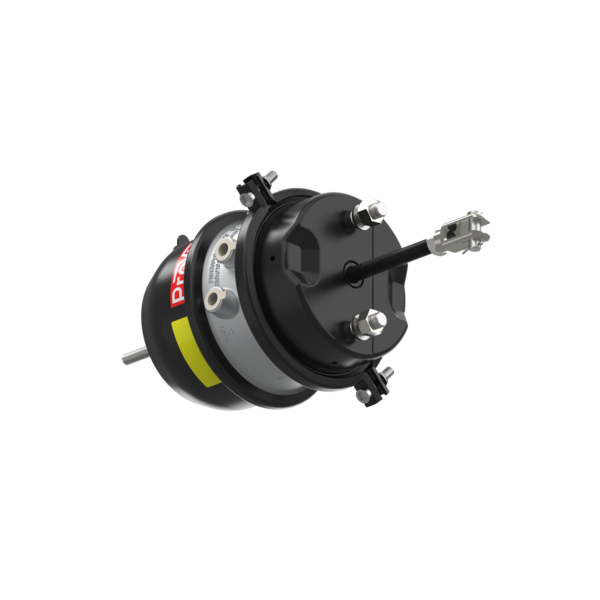

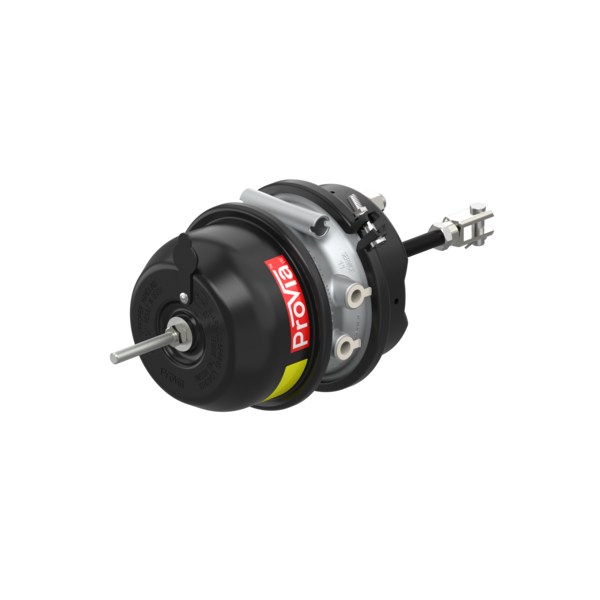

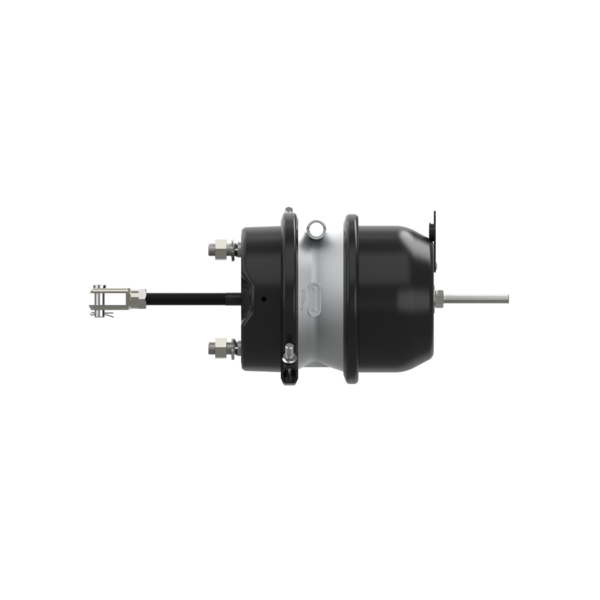

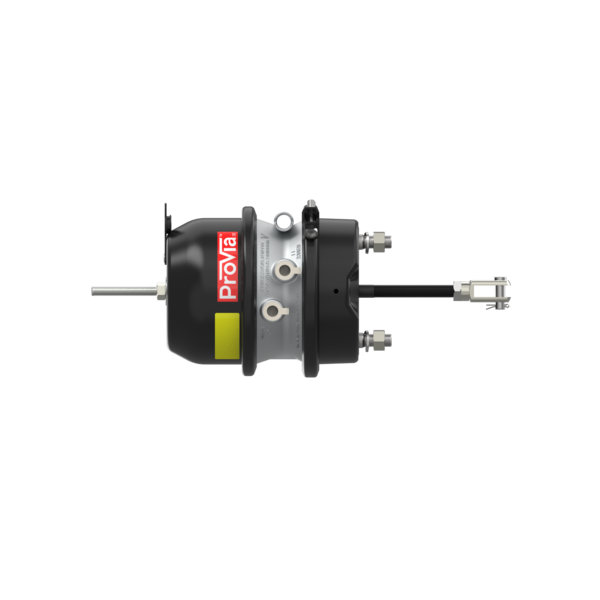

Double-Diaphragm Actuator Cam 30/30-2.5″

Material Number: PRO3932030

Sizes (MM x MM x MM): x x
Weight 9.13
GTIN 04057877003890


Buy
Calculated Volume (dm³)17.61
Calculated Weight (kg)0
CertificationsSAE
Clamp Band249 mm
Clamp band position45°
GTIN04057877003890
Length231 mm
Max. operating pressure10.0 bar
Mounting bolt length37.08 mm
Mounting bolt thread5/8-11 UNC2A
Port thread3/8-18 NPTF
ProVia Warranty1 year
Push-rod length140 mm
Push-rod length + yoke173 mm
Push-rod thread5/8" - 18 UNF - 2A
Size30 / 30 mm
Spring housing flange209 mm
Stroke63.5 mm
Technical SpecificationAM specification
Weight (kg)9.13
YokeYes

Documents

Catalog ProVia Product Catalog download
Drawing Outline Drawing (Doc 005) download
Brochure ProVia Product Brochure for Chinese vehicle applications download
