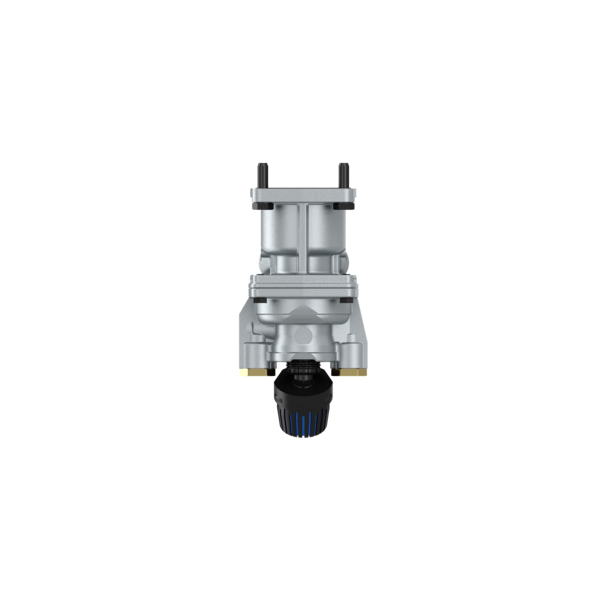

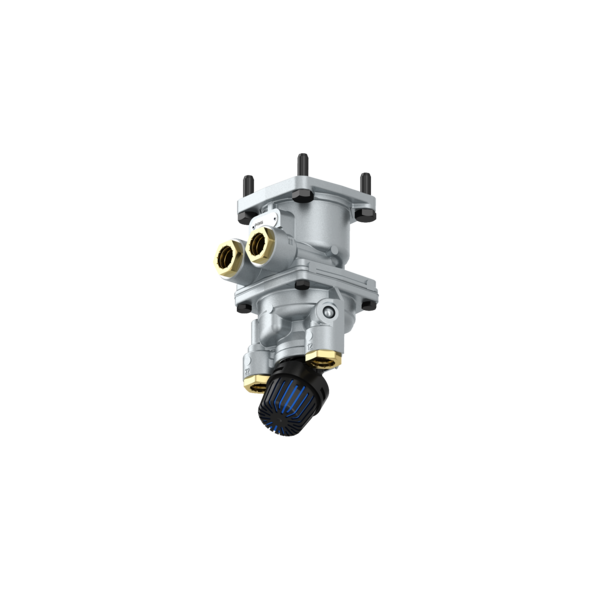

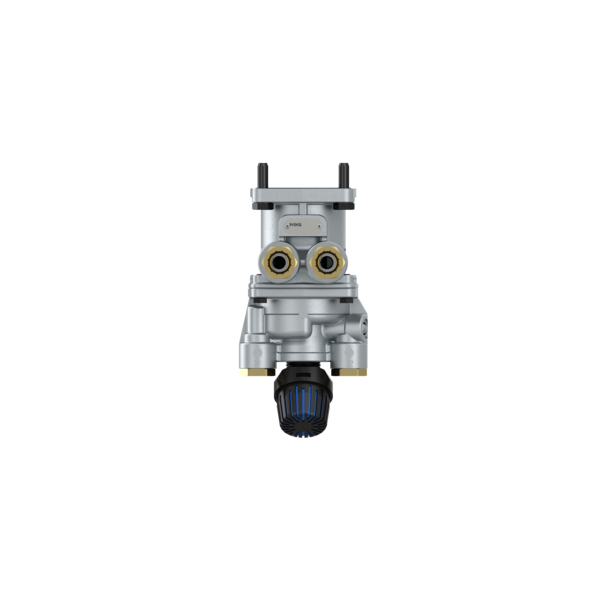

Foot Brake Valve

Material Number: PRO3152640

Sizes (MM x MM x MM): 106 x 102 x 210
Weight 1.173
GTIN 04057877003968
Category:


Buy
Basic Valve461 904 550 2
Calculated Volume (dm³)2.271
Distance between holes61 x 61 mm
ExhaustSilencer
GTIN04057877003968
Max. operating pressure13 bar
Max. temporarily pressure13 bar
Mounting4x M8
Nominal diameter10 mm
Operating pressure10.2 bar
PortsM22 x 1.5 VOSS
Port thread 11M22 x 1.5
Port thread 12M22 x 1.5
Port thread 21M22 x 1.5
Port thread 22M22 x 1.5
Predominance0.5 bar
Product CategoryCN
ProVia Warranty1 year
Technical SpecificationAM specification
Temperature range-40°C to +80°C
Weight (kg)1.173

Documents

Catalog ProVia Product Catalog - English download
Catalog ProVia Product Catalog - English download

Documents

DAF 1518065
MERCEDES-BENZ A0044314605
MERCEDES-BENZ A0044315905
PACCAR 1518065
WABCO 4613152640
FAW 351401050A
