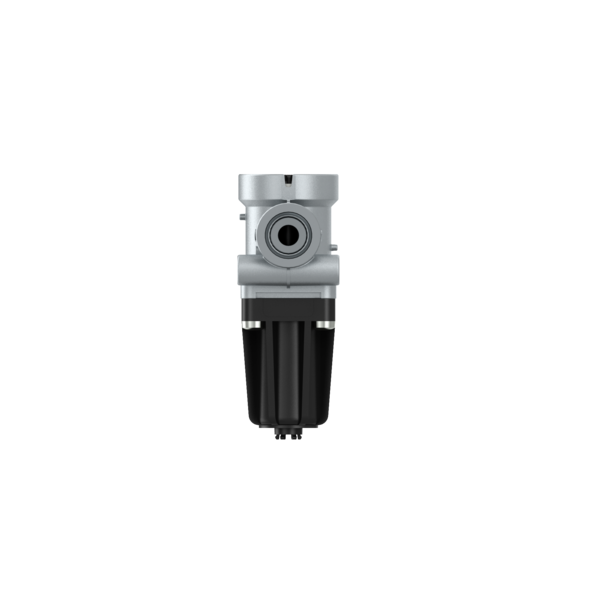

Pressure Limiting Valve

Material Number: PRO0103170

Sizes (MM x MM x MM): x x
Weight 0.411
GTIN 04057877001797


Buy
AdjustableYes
Calculated Volume (dm³)1.1866
Calculated Weight (kg)0
Delivered pressure6.5 at p1 = 12.0 bar
Delivery pressure6.5 bar
Distance between bolts56.0 mm
ExhaustØ 4 mm
GTIN04057877001797
Max. operating pressure20.0 bar
Mounting2x Ø 8.6 mm
PortsM22 x 1.5
Port thread 1M22 x 1.5
Port thread 2M22 x 1.5
Product CategoryDevice
ProVia Warranty1 year
Range of adjustment6.5 to 12.0 bar
Supply Pressure12.0 bar
Technical SpecificationAM specification
Temperature range-40°C to +80°C
VariantBasic
Weight (kg)0.411

Documents

Catalog ProVia Product Catalog download
Drawing Outline Drawing (Doc 005) download

Documents

MAN 0054293244
MAN 81521016282
MAN 81521016284
MERCEDES-BENZ 0054293244
MERCEDES-BENZ 6994290844
MERCEDES-BENZ 81521016284
NEOPLAN 81521016284
OTOKAR 95A1008702AA
PACCAR 1518116
