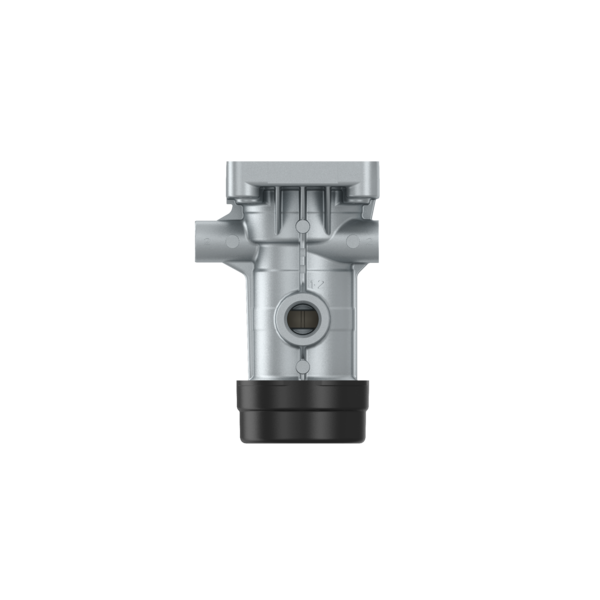

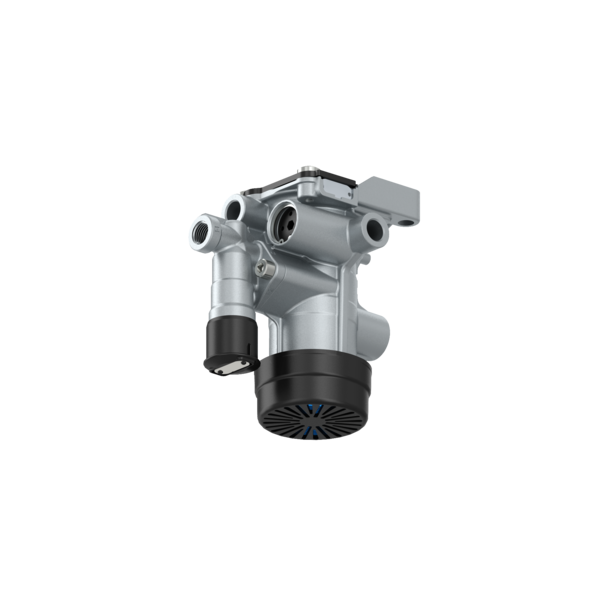

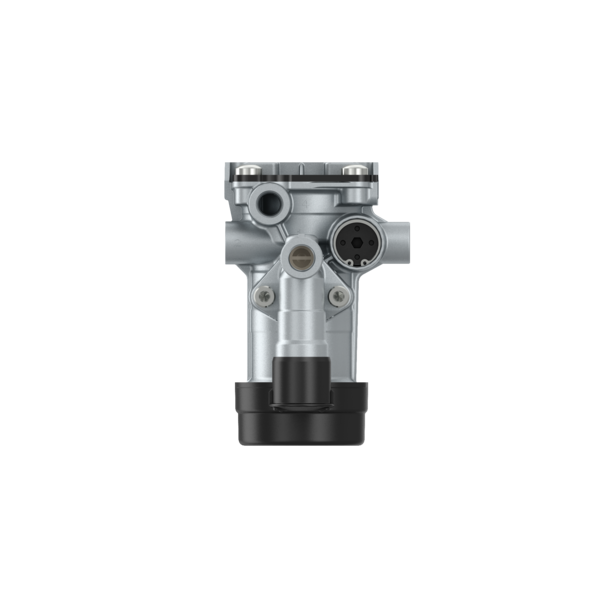

Relay Emergency Valve

Material Number: PRO6480040

Sizes (MM x MM x MM): 250 x 180 x 160
Weight 1.794
GTIN 04057877004644


Buy
Calculated Volume (dm³)7.2
Distance between holes71.0 mm
FunctionPredominance, Release
GTIN04057877004644
Max. operating pressure8.5 bar
Mounting2x Ø 11.0 mm
PortsM22×1.5 / M16 × 1.5
Port thread 1Ø 16.0 mm
Port thread 23x M22 x 1.5 JED152
Port thread 3Flap Exhaust
Port thread 4M16 x 1.5 JED152
Port thread 12M22 x 1.5 JED152
ProVia Warranty1 year
Range of adjustment1 bar
Technical SpecificationAM specification
Temperature range-40°C to +80°C
TypeOnly Emergency valve
Weight (kg)1.794

Documents

Drawing Outline Drawing (Doc 005) download
Catalog ProVia Product Catalog download

Documents

KEMPF 2101008
Faymonville 10549
PACCAR 1519312
SCANIA 2090081
SCHMITZ CARGOBULL 1060752
WABCO 9710027010
ZORZI 1012005
LANGENDORF 1133363
KEMPF 2101008
DAF 1519312
Faymonville 10549
PACCAR 1519312
SCANIA 2090081
SCHMITZ CARGOBULL 1060752
WABCO 9710027010
ZORZI 1012005
LANGENDORF 1133363
KEMPF 2101008
