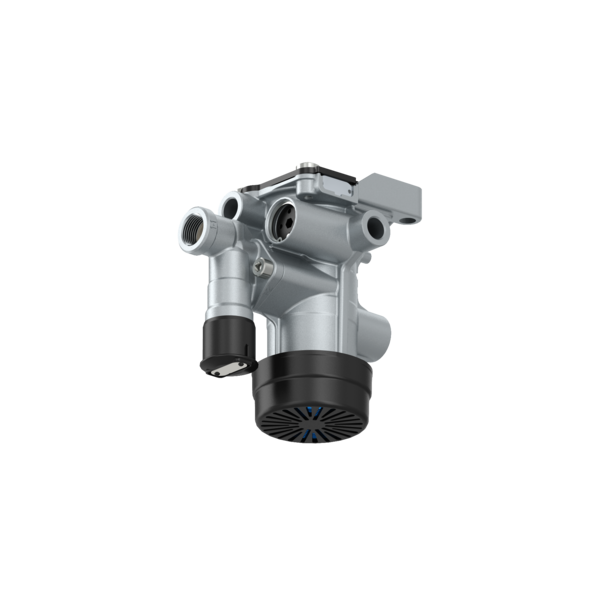

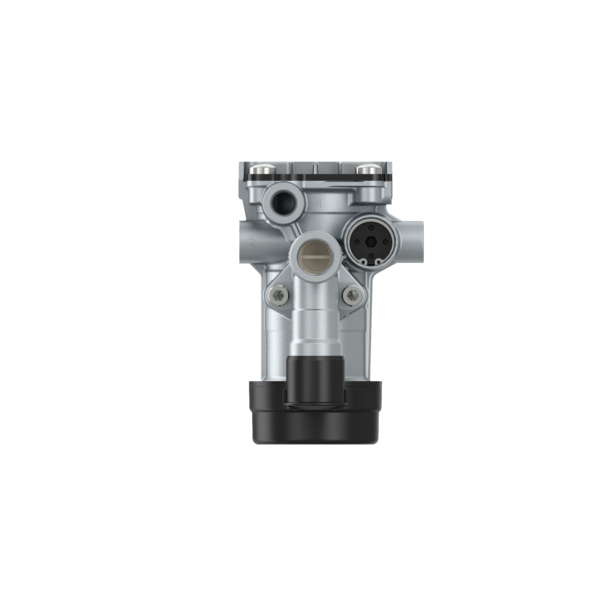

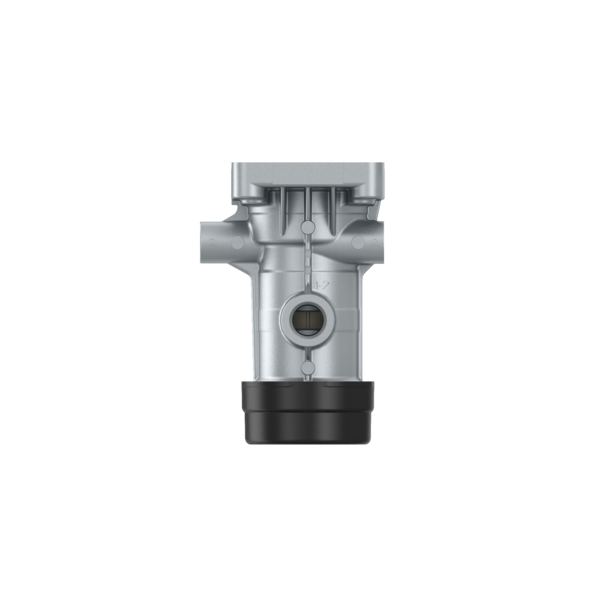

Relay Emergency Valve

Material Number: PRO6480030

Sizes (MM x MM x MM): 250 x 180 x 160
Weight 1.8
GTIN 04057877004637


Buy
Calculated Volume (dm³)7.2
Distance between holes71.0 mm
FunctionPredominance, Release
GTIN04057877004637
Max. operating pressure8.5 bar
Mounting2x Ø 11.0 mm
PortsM22 x 1.5/M22 x 1.5
Port thread 1M22 x 1.5 JED152
Port thread 23x M22 x 1.5 JED152
Port thread 3Flap Exhaust
Port thread 4M16 x 1.5 JED152
Port thread 12M22 x 1.5 JED152
Product CategoryCN
ProVia Warranty1 year
Range of adjustment1 bar
Technical SpecificationAM specification
Temperature range-40°C to +80°C
TypeOnly Emergency valve
Weight (kg)1.8

Documents

Drawing Outline Drawing (Doc 005) download
Catalog ProVia Product Catalog download

Documents

Schmitz INS0120001
GOLDHOFER 163413
LIEBHERR 502814801
Meiller 799027/70143221
SCANIA 2090079
SCHMITZ CARGOBULL 53355
SCHMITZ CARGOBULL 8283884000
SCHWARZMÜLLER 32939
WABCO 9710027000
Feldbinder 011609
Schmitz 053355
Feldbinder 11609
Meiller 79902770143221
DOLL 8143073
KÄSSBOHRER 8283884000
Tirsan 8283884000
JOHN DEERE DC54371
Schmitz INS0120001
DAF 1519310
GOLDHOFER 163413
LIEBHERR 502814801
Meiller 799027/70143221
SCANIA 2090079
SCHMITZ CARGOBULL 53355
SCHMITZ CARGOBULL 53355
SCHMITZ CARGOBULL 8283884000
SCHWARZMÜLLER 32939
WABCO 9710027000
Feldbinder 011609
Schmitz 053355
Feldbinder 11609
Meiller 79902770143221
DOLL 8143073
KÄSSBOHRER 8283884000
Tirsan 8283884000
JOHN DEERE DC54371
Schmitz INS0120001
