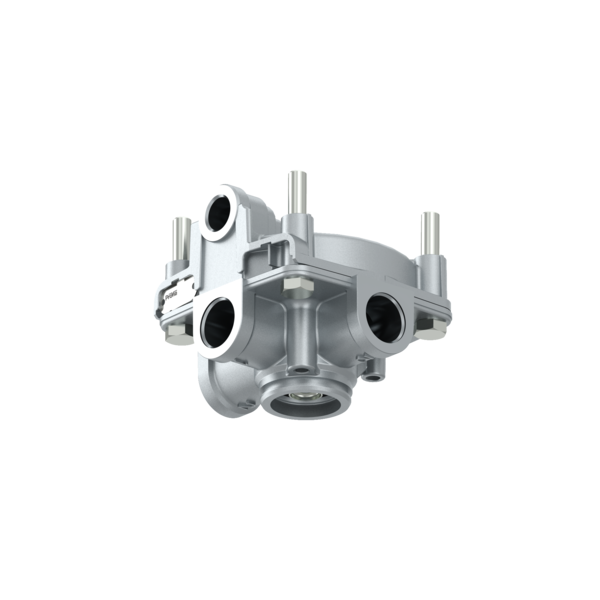

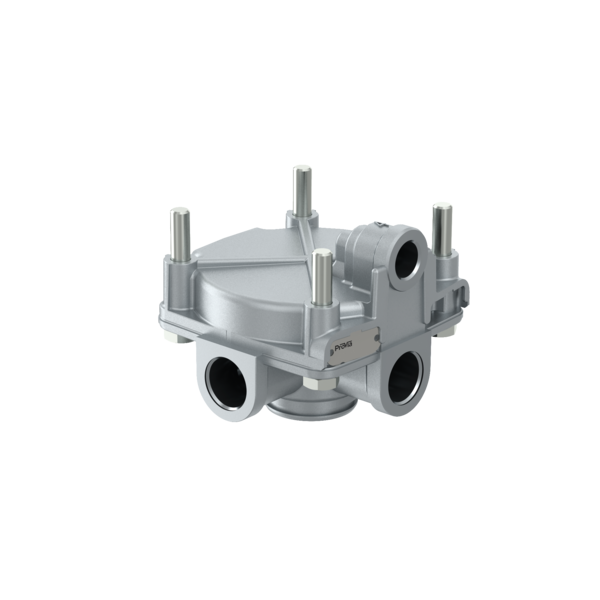

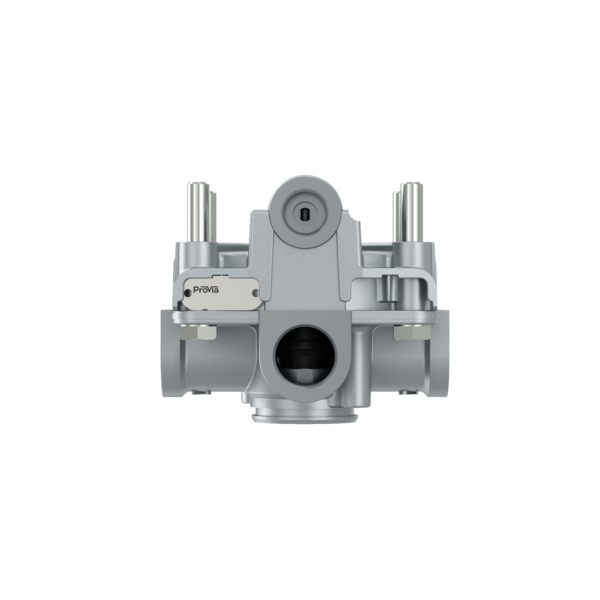

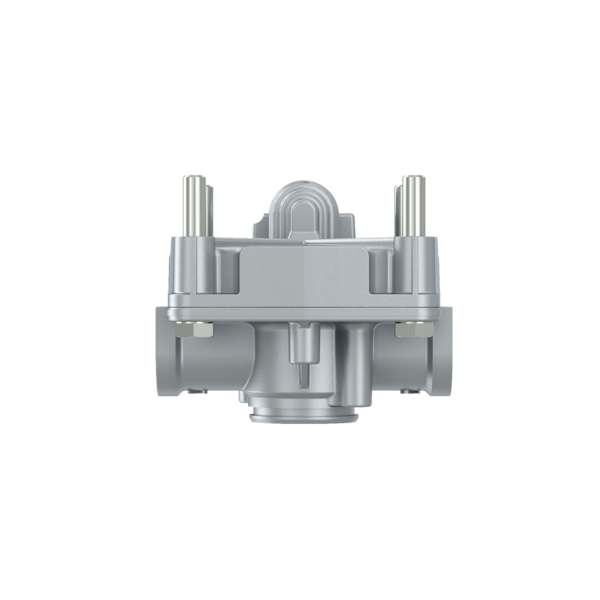

Relay Valve

Material Number: PRO0110040

Sizes (MM x MM x MM): 125 x 125 x 150
Weight 0.662
GTIN 04057877000202
Category:


Buy
Calculated Volume (dm³)2.344
GTIN04057877000202
Max. operating pressure10.0 bar
Max. temporarily pressure13 bar
Mounting4x M8
Opening pressure0.5 bar
Ports1, 2: M22 x 1.5; 4: M16 × 1.5
Port thread 1M22 x 1.5
Port thread 2M22 x 1.5
Port thread 4M16 x 1.5
Predominance0.2 bar
ProVia Warranty1 year
Regulating ratio1:1
Response pressure0.20 bar
Technical SpecificationAM specification
Temperature range-40°C to +80°C
Type of lever fixingBall Ø 10
VersionPressure reduction
Weight (kg)0.662

Documents

Drawing Outline Drawing (Doc 005) download
Catalog ProVia Product Catalog download

Documents

VOLVO WA9730110007
DAF 5021172710
KNORR-BREMSE AC574AX
KNORR-BREMSE AC574CXY
KNORR-BREMSE RE1110
MAN 81436066008
MERCEDES-BENZ 24733006
MERCEDES-BENZ A0034291344
SCANIA 1313871
SCANIA 1322986
SCANIA 2090235
SCANIA 2090237
SETRA 8285438000
VOLVO 11117866
VOLVO 3173150
KNORR-BREMSE 0481026021
KNORR-BREMSE 481026021000
WABCO 9730110000
WABCO 9730110007
WABCO 9730110110
WABCO 9730110020
WABCO 9730110027
MERCEDES-BENZ 0024733006
MERCEDES-BENZ 0004293044
MERCEDES-BENZ 0004296544
MAFI 0005662006
MERCEDES-BENZ 0014292044
MERCEDES-BENZ 0014295444
MERCEDES-BENZ 0014296044
MERCEDES-BENZ 0014296844
MERCEDES-BENZ 0014299144
Feldbinder 001546
MERCEDES-BENZ 0024290744
MERCEDES-BENZ 0024298444
MERCEDES-BENZ 0024299244
MERCEDES-BENZ 0024299344
MERCEDES-BENZ 0024299444
RENAULT 0024733005
MERCEDES-BENZ 0034291644
MERCEDES-BENZ 0034295244
MERCEDES-BENZ 0034295344
MERCEDES-BENZ 0034295944
Faymonville 0319
Schmitz 050317
SCANIA 0571174
SCANIA 0579044
DAF 0689331
DAF 1082666
IVECO 1082666
VOLVO 1082666
NEOPLAN 112231500
LANGENDORF 1133395
IVECO 114519
VOLVO 1197892
SCANIA 1378560
PACCAR 1444054
DAF 1444054R
DAF 1506486R
PACCAR 1506486R
DAF 1519331
VOLVO 1606709
Kalmar 1716070091
SCANIA 1738439
KÖGEL 175565
SCANIA 1935657
GOLDHOFER 200275
HALDEX 201004001
VDL Bus 20215552
KEMPF 2103009
KÄSSBOHRER 21151102179
Tirsan 21151102179
KÄSSBOHRER 21151103062
VDL Bus 215552
SCHWARZMÜLLER 22753
RENAULT 24733005
VDL Bus 28210200400
DAF 3162118
DAF 3162118
IVECO 3162118
VOLVO 3162118
DAF 317315
IVECO 317315
VOLVO 317315
IVECO 3307710R91
DAEWOO 3454401550
VOLVO 348909
SCANIA 350000
SCANIA 350001
HALDEX 355018011
HALDEX 355018018
HALDEX 355018021
HALDEX 355018061
HALDEX 355018071
HALDEX 355018091
HALDEX 355018571
HALDEX 355023011
HALDEX 355023071
HALDEX 355023571
HALDEX 355055001
HALDEX 355059071
HALDEX 355518071
ERF 4047273
MAN 4047273
LECITRAILER 4111190
DAF 42125234
IRISBUS 42125234
IVECO 42125234
VOLVO 42125234
ASHOK LEYLAND 445332009
ORTHAUS 49500721000
FORD 4C462K422AA
KRONE 500945165
RENAULT 5010045796
RENAULT 5021170464
LIEBHERR 502657508
LIEBHERR 502957601
LIEBHERR 5029846
LIEBHERR 502984608
LIEBHERR 5029915
LIEBHERR 5029915R
Schmitz 50317
KRONE 505821202
MERCEDES-BENZ 533531906010
STEYR 533531906010
Terex-Demag 55115540
SCANIA 571174
SCANIA 579044
IRISBUS 5801101681
IVECO 5801101681
SHAANXI 6112KG3527010
VAN HOOL 637206820
VOLVO 6886834
DAF 689331
DOLL 7019169
STEYR 79000360311
STEYR 79200360048
Meiller 79900939004952
MAN 81251506011
MAN 81436096005
MAN 81436096008
MAN 81521166008
MAN 81521166010
MAN 81521166013
MAN 81521166014
MAN 81521166016
MAN 81521166019
MAN 81521166020
MAN 81521166021
MAN 81521166022
MAN 81521166023
MAN 81521166035
MAN 81521166036
MAN 81521166037
MAN 81521166043
MAN 81521166047
MAN 81521166049
EVOBUS 8285438000
EVOBUS 82855140000
VOLVO 8551104
STEYR 89000360397
KRONE 945165
HENDRICKSON 9730110000
MAN 9730110000
STEYR 99014360047
STEYR 99100360074
FAUN 99707731617
EVOBUS A0034291344
FRUEHAUF A21316000003047B
Alexander Dennis AB9730110000
FRUEHAUF CF3520600
SHAANXI DZ93189360033
DAF MZK4110
IVECO MZK4110
LEYLAND-DAF MZK4110
VOLVO MZK4110
MAN N1011018624
Schmitz S050318
VOLVO WA9730110007
VOLVO WA9730110007
DAF 1505410
DAF 5021172710
KNORR-BREMSE AC574AX
KNORR-BREMSE AC574CXY
KNORR-BREMSE RE1110
MAN 81436066008
MERCEDES-BENZ 24733006
MERCEDES-BENZ A0034291344
SCANIA 1313871
SCANIA 1322986
SCANIA 2090235
SCANIA 2090237
SETRA 8285438000
VOLVO 11117866
VOLVO 3173150
KNORR-BREMSE 0481026021
KNORR-BREMSE 481026021000
WABCO 9730110000
WABCO 9730110007
WABCO 9730110110
WABCO 9730110020
WABCO 9730110027
MERCEDES-BENZ 0024733006
MERCEDES-BENZ 0004293044
MERCEDES-BENZ 0004296544
MAFI 0005662006
MERCEDES-BENZ 0014292044
MERCEDES-BENZ 0014295444
MERCEDES-BENZ 0014296044
MERCEDES-BENZ 0014296844
MERCEDES-BENZ 0014299144
Feldbinder 001546
MERCEDES-BENZ 0024290744
MERCEDES-BENZ 0024298444
MERCEDES-BENZ 0024299244
MERCEDES-BENZ 0024299344
MERCEDES-BENZ 0024299444
RENAULT 0024733005
MERCEDES-BENZ 0034291644
MERCEDES-BENZ 0034295244
MERCEDES-BENZ 0034295344
MERCEDES-BENZ 0034295944
Faymonville 0319
Schmitz 050317
SCANIA 0571174
SCANIA 0579044
DAF 0689331
DAF 1082666
IVECO 1082666
VOLVO 1082666
NEOPLAN 112231500
LANGENDORF 1133395
IVECO 114519
VOLVO 1197892
SCANIA 1378560
PACCAR 1444054
DAF 1444054R
DAF 1506486R
PACCAR 1506486R
DAF 1519331
VOLVO 1606709
Kalmar 1716070091
SCANIA 1738439
KÖGEL 175565
SCANIA 1935657
GOLDHOFER 200275
HALDEX 201004001
VDL Bus 20215552
KEMPF 2103009
KÄSSBOHRER 21151102179
Tirsan 21151102179
KÄSSBOHRER 21151103062
VDL Bus 215552
SCHWARZMÜLLER 22753
RENAULT 24733005
VDL Bus 28210200400
DAF 3162118
DAF 3162118
IVECO 3162118
VOLVO 3162118
DAF 317315
IVECO 317315
VOLVO 317315
IVECO 3307710R91
DAEWOO 3454401550
VOLVO 348909
SCANIA 350000
SCANIA 350001
HALDEX 355018011
HALDEX 355018018
HALDEX 355018021
HALDEX 355018061
HALDEX 355018071
HALDEX 355018091
HALDEX 355018571
HALDEX 355023011
HALDEX 355023071
HALDEX 355023571
HALDEX 355055001
HALDEX 355059071
HALDEX 355518071
ERF 4047273
MAN 4047273
LECITRAILER 4111190
DAF 42125234
IRISBUS 42125234
IVECO 42125234
VOLVO 42125234
ASHOK LEYLAND 445332009
ORTHAUS 49500721000
FORD 4C462K422AA
KRONE 500945165
RENAULT 5010045796
RENAULT 5021170464
LIEBHERR 502657508
LIEBHERR 502957601
LIEBHERR 5029846
LIEBHERR 502984608
LIEBHERR 5029915
LIEBHERR 5029915R
Schmitz 50317
KRONE 505821202
MERCEDES-BENZ 533531906010
STEYR 533531906010
Terex-Demag 55115540
SCANIA 571174
SCANIA 579044
IRISBUS 5801101681
IVECO 5801101681
SHAANXI 6112KG3527010
VAN HOOL 637206820
VOLVO 6886834
DAF 689331
DOLL 7019169
STEYR 79000360311
STEYR 79200360048
Meiller 79900939004952
MAN 81251506011
MAN 81436096005
MAN 81436096008
MAN 81521166008
MAN 81521166010
MAN 81521166013
MAN 81521166014
MAN 81521166016
MAN 81521166019
MAN 81521166020
MAN 81521166021
MAN 81521166022
MAN 81521166023
MAN 81521166035
MAN 81521166036
MAN 81521166037
MAN 81521166043
MAN 81521166047
MAN 81521166049
EVOBUS 8285438000
EVOBUS 82855140000
VOLVO 8551104
STEYR 89000360397
KRONE 945165
HENDRICKSON 9730110000
MAN 9730110000
STEYR 99014360047
STEYR 99100360074
FAUN 99707731617
EVOBUS A0034291344
FRUEHAUF A21316000003047B
Alexander Dennis AB9730110000
FRUEHAUF CF3520600
SHAANXI DZ93189360033
DAF MZK4110
IVECO MZK4110
LEYLAND-DAF MZK4110
VOLVO MZK4110
MAN N1011018624
Schmitz S050318
VOLVO WA9730110007
VOLVO WA9730110007
