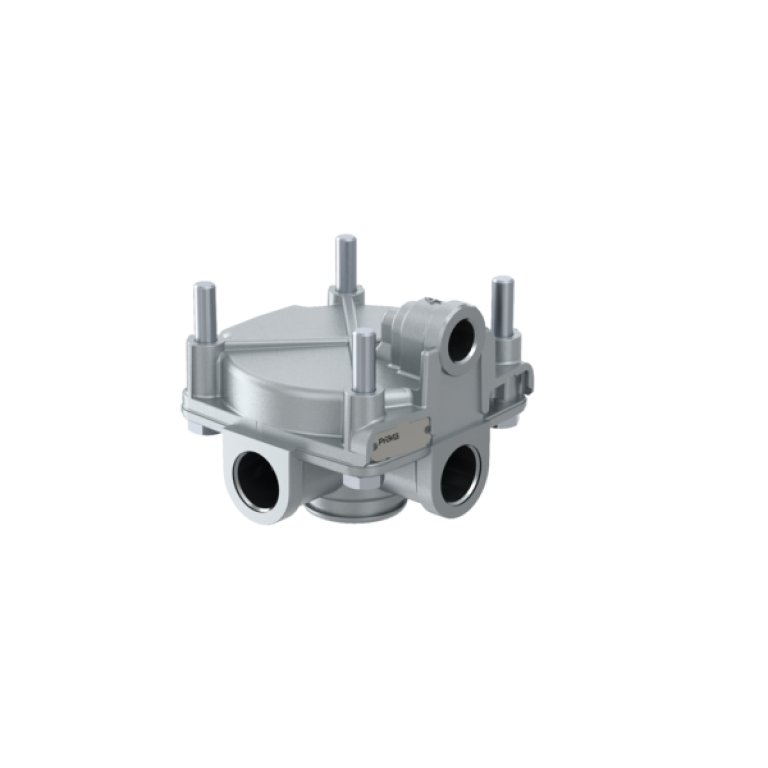

Relay Valve

Material Number: PRO0110050

Sizes (MM x MM x MM): 145 x 127 x 127
Weight 0.665
GTIN 04057877000219
Category:


Buy
Calculated Volume (dm³)2.339
GTIN04057877000219
Max. operating pressure10.0 bar
Max. temporarily pressure13 bar
Mounting4x M8
Opening pressure0.5 bar
Ports1, 2: M22 x 1.5; 4: M16 × 1.5
Port thread 1M22 x 1.5
Port thread 2M22 x 1.5
Port thread 4M16 x 1.5
Predominance0.38 bar
Product CategoryCN
ProVia Warranty1 year
Regulating ratio1:1
Response pressure0.38 bar
Technical SpecificationAM specification
Temperature range-40°C to +80°C
VersionPressure reduction
Weight (kg)0.665

Documents

Drawing Outline Drawing (Doc 005) download
Catalog ProVia Product Catalog download

Documents

WABCO 9730110100
SCANIA 2131071
WABCO 9730110100
SCANIA 1411244
SCANIA 2131071
WABCO 9730110100
