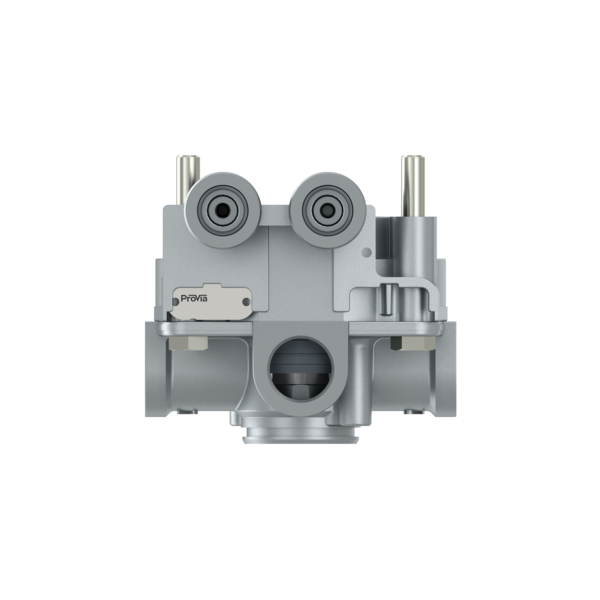

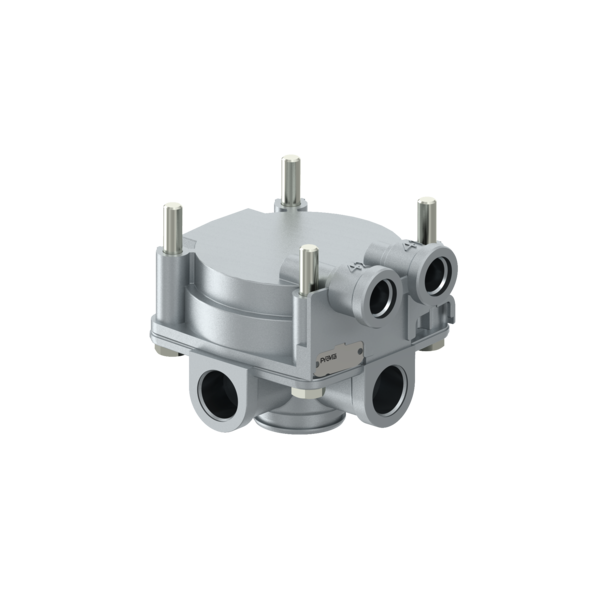

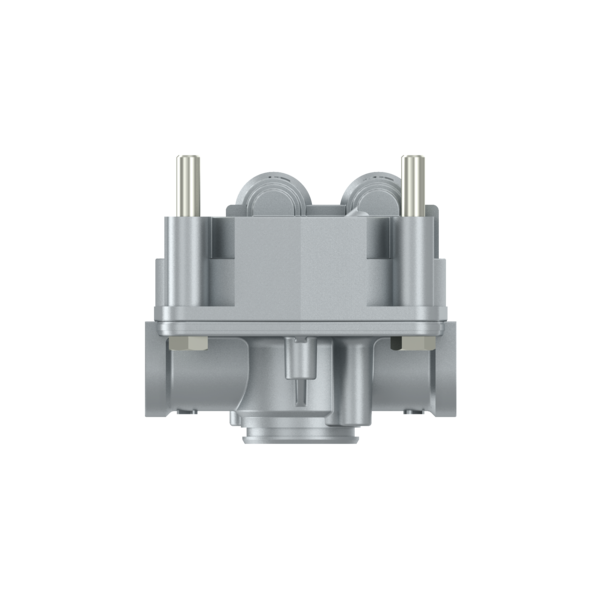

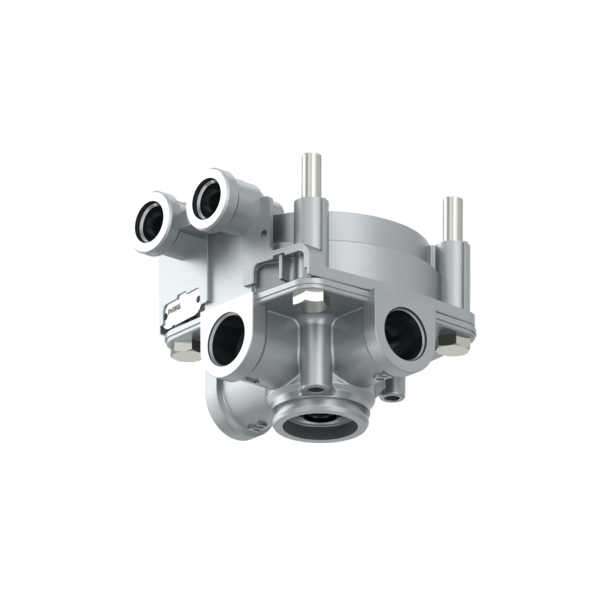

Relay Valve

Material Number: PRO6430030

Sizes (MM x MM x MM): x x
Weight 0.807
GTIN 04057877023652
Category:


Buy
Calculated Volume (dm³)2.45
Calculated Weight (kg)0
GTIN04057877023652
Max. operating pressure10.0 bar
Operating pressure13.0 bar
Port thread 1M22 x 1.5
Port thread 21M22 x 1.5
Port thread 22M22 x 1.5
Port thread 41M16 x 1.5 JED -152- VOSS, RAUFOSS, PARKER, ANOFLEX
Port thread 42M16 x 1.5 JED -152- VOSS, RAUFOSS, PARKER, ANOFLEX
Product CategoryDevice
ProVia Warranty1 year
Response pressure0.3 bar
Technical SpecificationAM specification
Temperature range-40°C to +80°C
UPC193134006717
Weight (kg)0.807
Weight (lb)1.779

Documents

Drawing Outline Drawing (Doc 005) download
Brochure ProVia Product Brochure for Chinese vehicle applications download
Catalog ProVia Product Catalog download

Documents

YUTONG 352700032
VDL Bus 30011287
YUTONG 352700032
