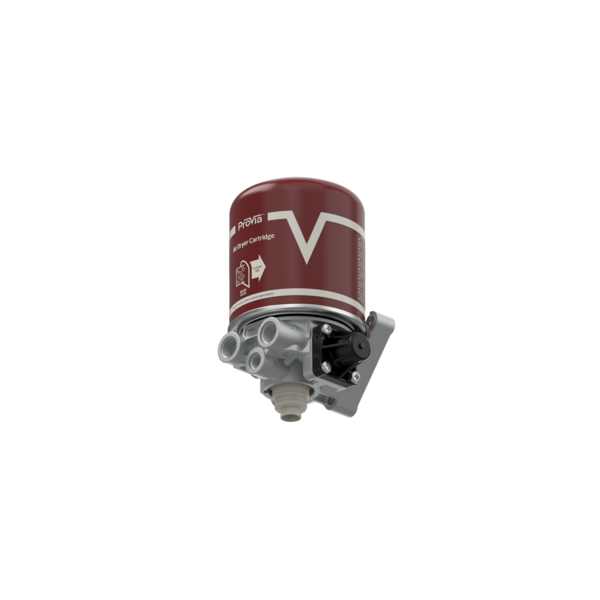

Single-Chamber Air Dryer

Material Number: PRO4100040

Sizes (MM x MM x MM): 280 x 210 x 210
Weight 4
GTIN 04057877002794
Category:


Buy
Calculated Volume (dm³)12.35
Cartridge typeDesiccant Cartridge
Cut-out pressure12.5±0.3 bar
ExhaustJED-463-1
GTIN04057877002794
HeaterPRO 410 920 2
Max. operating pressure13.0 bar
Operational range1.5 ±0.5 bar
Ports1, 21: M22 x 1.5; 22: M16 × 1.5
Port thread 3JED-463-1
Port thread 4/231/4" - 18 NPTF
Port thread 21M22 x 1.5
Port thread 22M16 x 1.5
ProVia Warranty1 year
Technical SpecificationAM specification
Temperature range-40°C to +65°C
Weight (kg)4

Documents

Drawing Outline Drawing (Doc 005) download
Catalog ProVia Product Catalog download

Documents

MAN 81521026318
KNORR-BREMSE LA6222
KNORR-BREMSE LA8211
KNORR-BREMSE LA8212
KNORR-BREMSE LA8254
MAN 81521026024
MAN 81521026097
WABCO 4324101130
WABCO 4324101120
PACCAR 1517967
MAN 81521026020
MAN 81521026022
MAN 81521026037
MAN 81521026046
MAN 81521026047
MAN 81521026055
MAN 81521026058
MAN 81521026060
MAN 81521026061
NEOPLAN 81521026097
MAN 81521026101
MAN 81521026102
ERF 81521026105
MAN 81521026105
NEOPLAN 81521026105
MAN 81521026107
MAN 81521026109
MAN 81521026220
MAN 81521026318
DAF 1517967
KNORR-BREMSE LA6222
KNORR-BREMSE LA8211
KNORR-BREMSE LA8212
KNORR-BREMSE LA8254
MAN 81521026024
MAN 81521026097
WABCO 4324101130
WABCO 4324101120
PACCAR 1517967
MAN 81521026020
MAN 81521026022
MAN 81521026037
MAN 81521026046
MAN 81521026047
MAN 81521026055
MAN 81521026058
MAN 81521026060
MAN 81521026061
NEOPLAN 81521026097
MAN 81521026101
MAN 81521026102
ERF 81521026105
MAN 81521026105
NEOPLAN 81521026105
MAN 81521026107
MAN 81521026109
MAN 81521026220
MAN 81521026318
