| Adjustable | Yes |
| Calculated Volume (dm³) | 1.1866 |
| Calculated Weight (kg) | 0 |
| Delivered pressure | 5.3 at p1 = 7.5 bar |
| Delivery pressure | 5.3 bar |
| Distance between bolts | 56.0 mm |
| Exhaust | Ø 4 mm |
| GTIN | 04057877001780 |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Ports | M22×1.5 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Product category | Device |
| ProVia Warranty | 1 yıl |
| Range of adjustment | 5.3 to 7.5 bar |
| Supply Pressure | 7.5 bar |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Variant | height limitation |
| Weight (kg) | 0.41 |

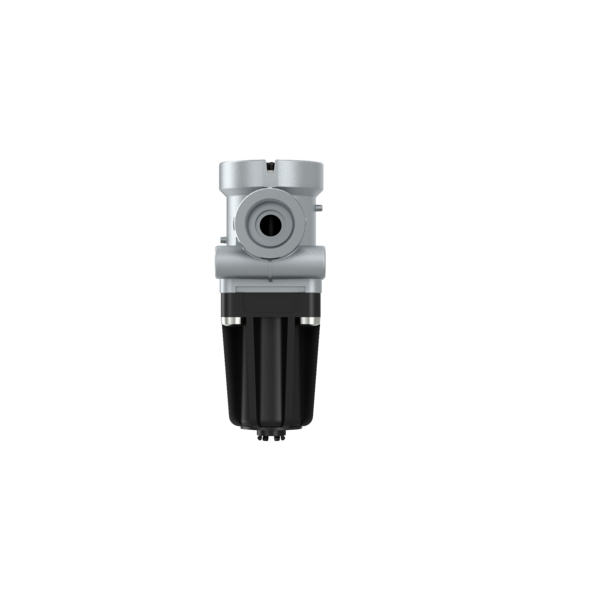

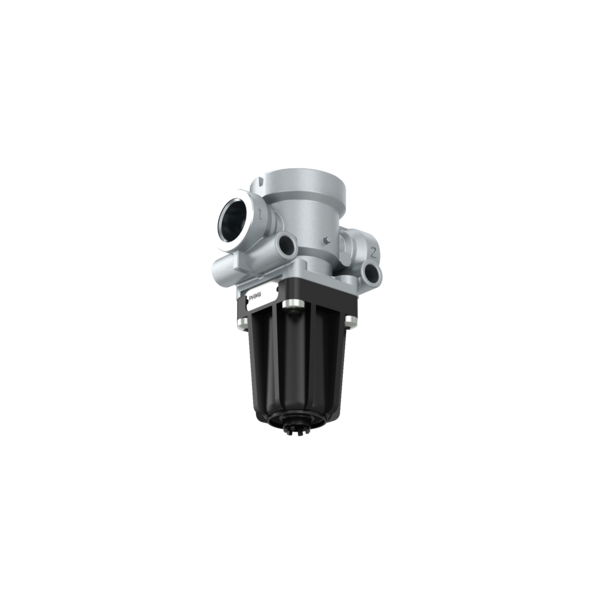

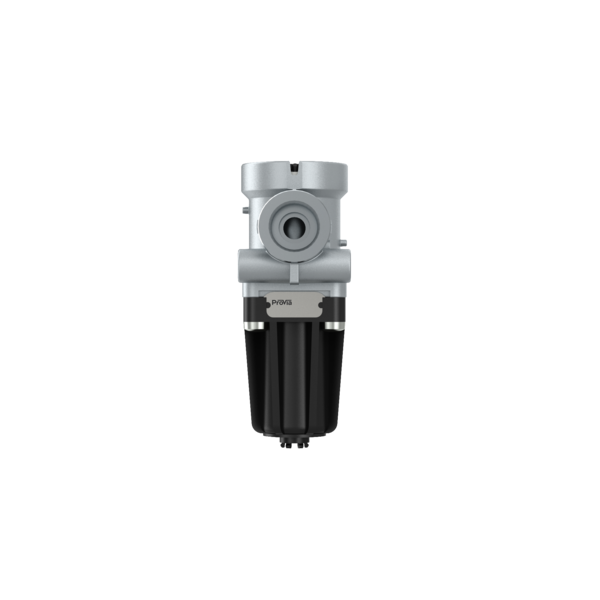

Basınç Sınırlayıcı Valf
Material Number: PRO0103020| Boyutlar (MM x MM x MM): | 180 x 103 x 64 |
| Ağırlık | 0.41 |
| GTIN | 04057877001780 |
Satın Al
Documents
| Drawing | pro0103020____005_dascheck_a3_page-1---notset_tif.pdf | indir |
| Catalog | provia_product-catalogue_en.pdf | indir |
Documents
| BPW | 0243107900 |
| BPW | 0243109800 |
| DAF | 104249 |
| DAF | 106703 |
| DAF | 1406784 |
| DAF | 1506192R |
| DAF | 167846 |
| DAF | 638057 |
| DAF | 638058 |
| DAF | 641127 |
| DAF | 641128 |
| DAF | 646904 |
| DAF | 664735 |
| DAF | 692047 |
| DAF | 703271 |
| EVOBUS | 8285343000 |
| FAUN | 1614147 |
| FELDBINDER | 008852 |
| IVECO | 02515829 |
| IVECO | 09926016 |
| IVECO | 41020637 |
| IVECO | 41031426 |
| IVECO | 61595603 |
| IVECO | 61596260 |
| IVECO | 61599528 |
| KEMPF | 2105002 |
| KNORR-BREMSE | I61236 |
| LANGENDORF | 1218698 |
| LEYLAND DAF | 0106703 |
| LEYLAND DAF | ABRA981 |
| LIEBHERR | 502666808 |
| LIEBHERR | 5029651 |
| LIEBHERR | 5029663 |
| LIEBHERR | 5029667 |
| LIEBHERR | 5029678 |
| LIEBHERR | 5029834 |
| LIEBHERR | 502983408 |
| LIEBHERR | 502983977 |
| LIEBHERR | 5029993 |
| MAN | 81521016058 |
| MAN | 81521616054 |
| MERCEDES-BENZ | 0014299044 |
| NOOTEBOOM | 3311381 |
| NOOTEBOOM | 40051672 |
| OTOKAR | AIF1916 |
| RENAULT | 5000438152 |
| RENAULT | 5000442713 |
| RENAULT | 5000607007 |
| SCANIA | 1935019 |
| SCANIA | 2090272 |
| SCANIA | 318158 |
| SCANIA | 400555 |
| SCHMITZ CARGOBULL | 050609 |
| SCHMITZ CARGOBULL | 50609 |
| SCHMITZ CARGOBULL | S050609 |
| SCHWARZMÜLLER | 33716 |
| STEYR | 99100360065 |
| VAN HOOL | 637208870 |
| VAN HOOL | 637208890 |
| VAN HOOL | 637208900 |
| VAN HOOL | 637208910 |
| VAN HOOL | 637209370 |
| VAN HOOL | 637209380 |
| VAN HOOL | 637404840 |
| VAN HOOL | 637408360 |
| VAN HOOL | 637408500 |
| VAN HOOL | 660070521 |
| VAN HOOL | 660526759 |
| VOLVO | 6626859 |
| VOLVO | 6775784 |
| VOLVO | 6897697 |
| VOLVO | WA4750103027 |
| VW | 613607343A |
| VW | 613607344A |
| VW | 613607343A |
| VW | 613607344A |
