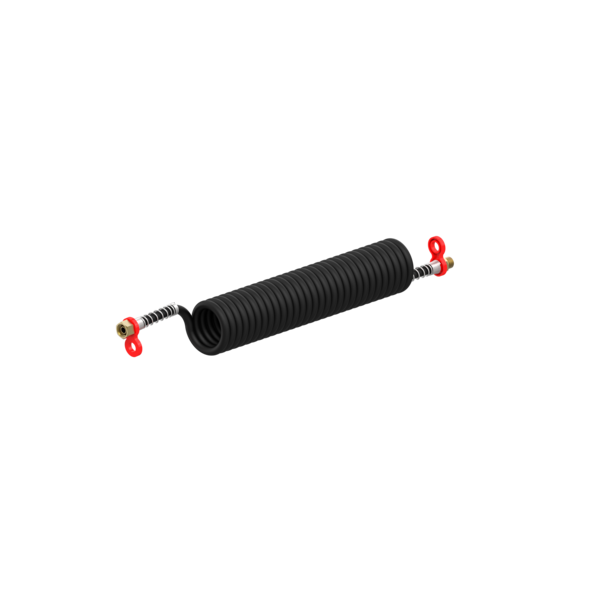

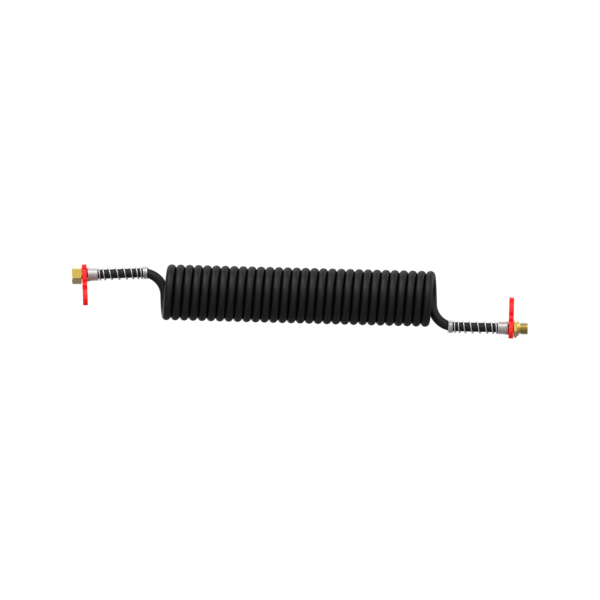

Coiled Tube

Material Number: PRO7110600

Sizes (MM x MM x MM): 580 x 105 x 105
Weight 0.496
GTIN 04057877000271


Buy
Calculated Volume (dm³)6.395
ColorYellow
Color Kink ProtectionYellow
FittingsM16×1.5 male / M18×1.5 female
GTIN04057877000271
Inner Diameter9 mm
Length4000 mm
Material (Aftermarket)Multilayer (PA12/PA6/PA12)
Max. operating pressure10.0 bar
Outer Diameter12 mm
Port thread 1Male M16 x 1.5
Port thread 2Female M18 x 1.5
Product CategoryCN
ProVia Warranty1 year
Size12 x 1.5 mm
StandardISO 7375 / ISO 7628
Technical SpecificationAM specification
Temperature range-40°C to +80°C
TypeØ 12.0 x 1.5 mm
VersionWith fittings
Weight (kg)0.496
Working length4 m

Documents

Catalog ProVia Product Catalog - English download
Catalog ProVia Product Catalog - English download
Drawing Outline Drawing -Table (Doc 053) download
Flyer Coiled & straight tubes download
Others Coiled & straight tubes download
Others ProVia Product Brochure download

Documents

WABCO 4527110600
