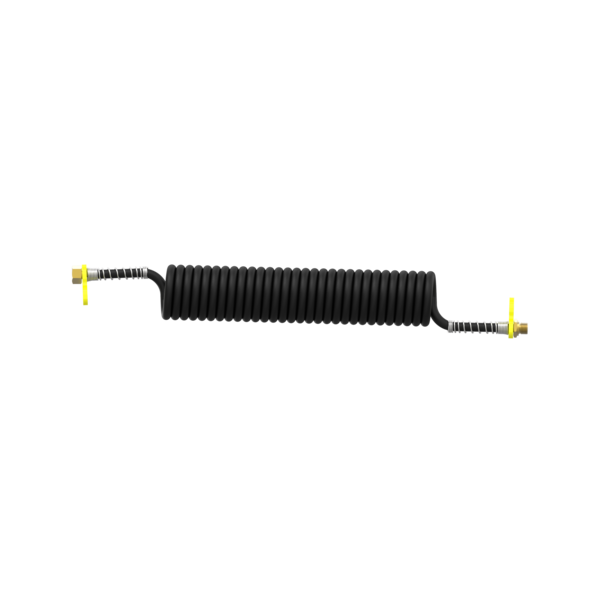

Coiled Tube

Material Number: PRO7110610

Sizes (MM x MM x MM): x x
Weight 0.483
GTIN 04057877000325


Buy
Body materialMultilayer (PA12/PA6/PA12)
Calculated Volume (dm³)6.284
Calculated Weight (kg)0
Color Kink ProtectionYellow
FittingsM16×1.5 male / M18×1.5 female
GTIN04057877000325
Inner Diameter9.0 mm
Length4000 mm
Max. operating pressure10.0 bar
Outer Diameter12 mm
Port thread 1Male M16 x 1.5
Port thread 2Female M18 x 1.5
ProVia Warranty1 year
Size12 x 1.5 mm
Technical SpecificationAM specification
Temperature range-40°C to +80°C
TP_STANDARDISO 7375 / ISO 7628
TypeØ 12.0 x 1.5 mm
UPC193134004294
VersionWith fittings
Weight (kg)0.483
Weight (lb)1.0648
Working length4 m

Documents

Catalog ProVia Product Catalog download
Drawing Outline Drawing -Table (Doc 053) download
