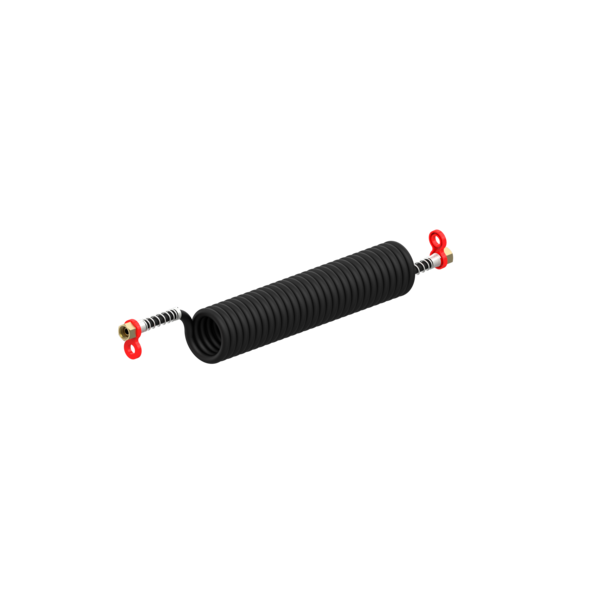

Coiled Tube

Material Number: PRO7110620

Sizes (MM x MM x MM): 580 x 115 x 115
Weight 0.508
GTIN 04057877004507


Buy
Calculated Volume (dm³)7.67
ColorYellow
Color Kink ProtectionYellow
FittingsM18×1.5 female / M18×1.5 female
GTIN04057877004507
Inner Diameter9 mm
Length4000 mm
Material (Aftermarket)Multilayer (PA12/PA6/PA12)
Max. operating pressure10.0 bar
Outer Diameter12 mm
Port thread 1Female M18 x 1.5
Port thread 2Female M18 x 1.5
Product CategoryCN
ProVia Warranty1 year
Size12 x 1.5 mm
StandardISO 7375 / ISO 7628
Technical SpecificationAM specification
Temperature range-40°C to +80°C
TypeØ 12.0 x 1.5 mm
VersionWith fittings
Weight (kg)0.508
Working length4 m

Documents

Catalog ProVia Product Catalog - English download
Catalog ProVia Product Catalog - English download
Drawing Outline Drawing -Table (Doc 053) download
Drawing Outline Drawing -Table (Doc 053) download
