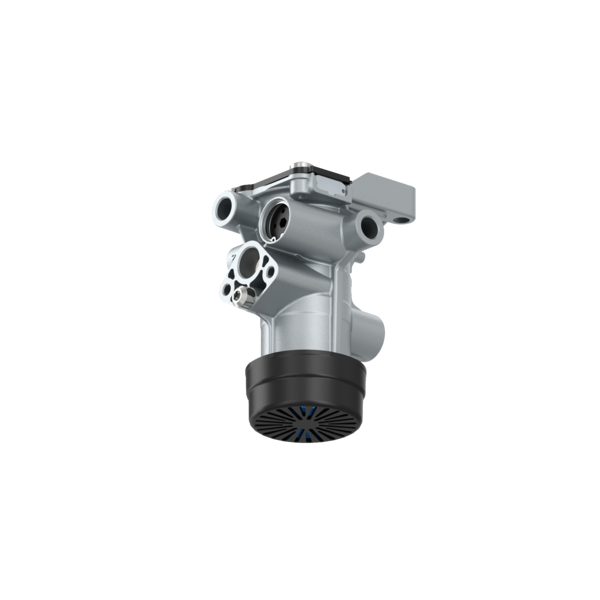

Relay Emergency Valve

Material Number: PRO6480020

Sizes (MM x MM x MM): 250 x 180 x 160
Weight 1.626
GTIN 04057877004613


Buy
Calculated Volume (dm³)7.2
Distance between holes71.0 mm
Function
GTIN04057877004613
Max. operating pressure8.5 bar
Mounting2x Ø 11.0 mm
PortsM22 x 1.5
Port thread 1M22 x 1.5 JED152
Port thread 23x M22 x 1.5 JED152
Port thread 3Silencer
Port thread 4M16 x 1.5 JED152
Port thread 12M22 x 1.5 JED152
ProVia Warranty1 year
Technical SpecificationAM specification
Temperature range-40°C to +80°C
TypeOnly Emergency valve
Weight (kg)1.626

Documents

Drawing Outline Drawing (Doc 005) download
Catalog ProVia Product Catalog download

Documents

VOLVO WA9710023010
Feldbinder 297449
GOLDHOFER 167732
KRONE 5816897/0
LOHR A05021208
MAN N2521160026
Meiller 706060/70044428
NOOTEBOOM 1745134
PACCAR 1506171
RENAULT 5021208823
SCANIA 1912351
SCHMITZ CARGOBULL 1042995
SCHWARZMÜLLER 54789
Tirsan 21150110046
VAN HOOL 10868345
WABCO 9710023010
LOHR A05021208
Nooteboom 1745134
ZORZI 1012018
LANGENDORF 1230528
DAF 1506171
Nooteboom 184726
KÖGEL 349842
SAMRO 4001340
LECITRAILER 4111290
KRONE 5816897
KRONE 58168970
Meiller 70606070044428
DOLL 7078510
HENDRICKSON 9710023010
VOLVO WA9710023010
Faymonville 46031
Feldbinder 297449
GOLDHOFER 167732
KRONE 5816897/0
LOHR A05021208
MAN N2521160026
Meiller 706060/70044428
NOOTEBOOM 1745134
PACCAR 1506171
RENAULT 5021208823
SCANIA 1912351
SCHMITZ CARGOBULL 1042995
SCHWARZMÜLLER 54789
Tirsan 21150110046
VAN HOOL 10868345
WABCO 9710023010
LOHR A05021208
Nooteboom 1745134
ZORZI 1012018
LANGENDORF 1230528
DAF 1506171
Nooteboom 184726
KÖGEL 349842
SAMRO 4001340
LECITRAILER 4111290
KRONE 5816897
KRONE 58168970
Meiller 70606070044428
DOLL 7078510
HENDRICKSON 9710023010
VOLVO WA9710023010
