| Bolt lengths | 38.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 40.95 |
| Calculated Weight (kg) | 0 |
| Certifications | SAE & TÜV |
| Clamp Band | 262 mm |
| Clamp band position | 45° |
| Clevis pins | 13.9 mm |
| Distance between bolts | 120.6 mm |
| GTIN | 04057877005917 |
| Length | 268 mm |
| Max. operating pressure | 10.0 bar |
| Mounting bolt length | 38 mm |
| Mounting bolt thread | M16×1.5 |
| Operating pressure | 8.5 bar |
| Port thread | M16×1.5 |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Product category | Device |
| ProVia Warranty | 1 yıl |
| Push-rod length | 288 mm |
| Push-rod length + yoke | 288 mm |
| Push-rod thread | M16 x 1.5 |
| Release pressure | 4.8 bar |
| Return-spring force | 100 N |
| Size | 30 / 30 mm |
| Spring housing flange | 208.5 mm |
| Stroke | 76.2 mm |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Type | 30/30-3.0'' |
| Type of operation | Cam |
| UPC | 193134004317 |
| Version | Without boot |
| Weight (kg) | 9.9 |
| Weight (lb) | 21.83 |
| Yoke | Yes |

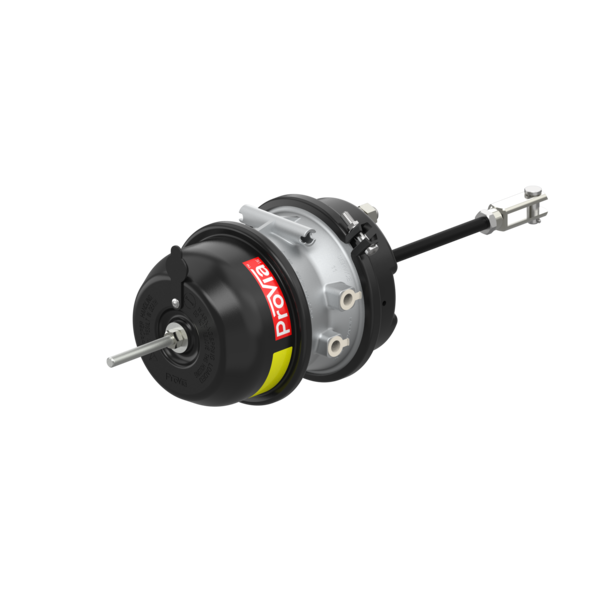

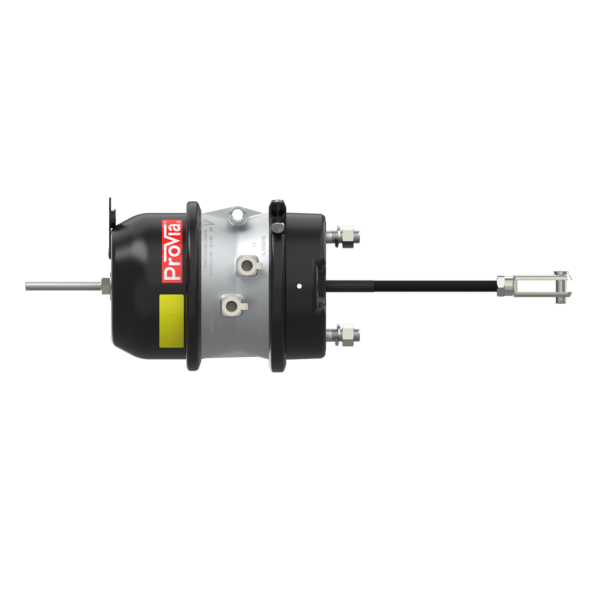

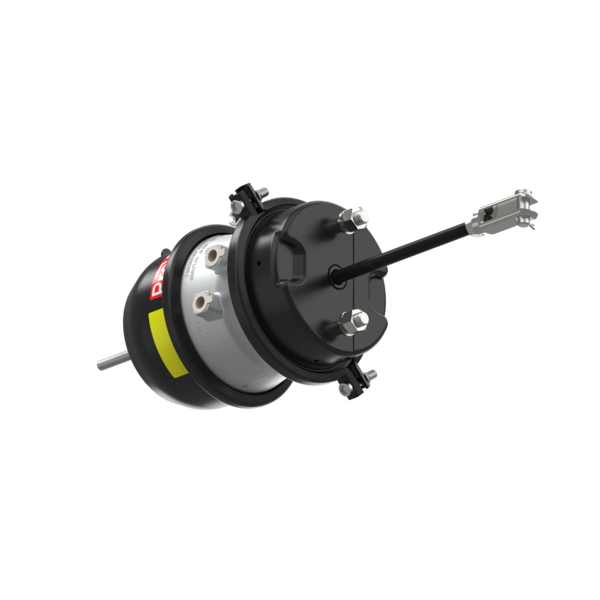

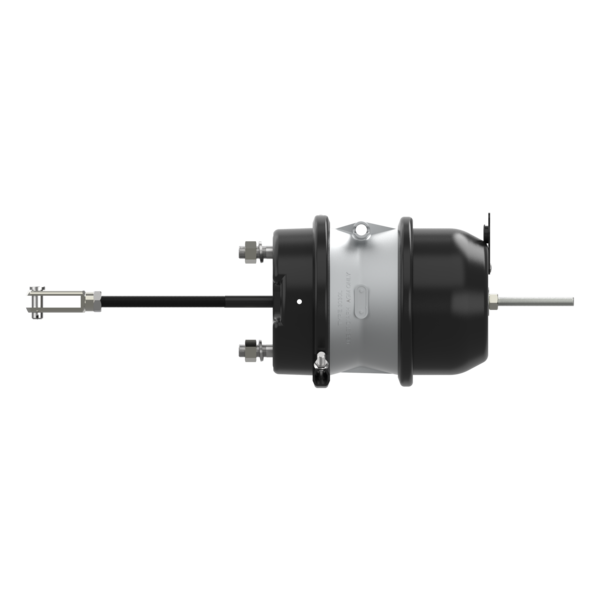

Double-Diaphragm Actuator Cam
Material Number: PRO0000100| Boyutlar (MM x MM x MM): | 650 x 280 x 225 |
| Ağırlık | 9.9 |
| GTIN | 04057877005917 |
Satın Al
Documents
| certificate | provia_tristop_3030_stroke_76.2_bc0188.1.pdf | indir |
| Brochure | Outline Drawing (Doc 005) | indir |
| Drawing | pro0000100____005_dascheck_a12_page-1---notset_tif.pdf | indir |
| Catalog | provia_product-catalogue_en.pdf | indir |
Documents
| BPW | 0544421010 |
| DAF | 0883258 |
| DAF | 0883546 |
| DAF | 883258 |
| DOLL | 7028798 |
| FAYMONVILLE | 133731 |
| HALDEX | 1363030001 |
| JOHN DEERE | WZ2480212 |
| KÄSSBOHRER | 21151105033 |
| LECITRAILER | 4112041 |
| MEILLER | 79688739022620 |
| NOOTEBOOM | 06567 |
| NOOTEBOOM | 2493030 |
| PACCAR | 0879099 |
| SAF | 3454112000 |
| SAF | 3454112300 |
| SCANIA | 1738483 |
| SCANIA | 2089709 |
| SCANIA | 2089757 |
| SCANIA | 2089758 |
| SCANIA | 2089759 |
| SCANIA | 2089760 |
| SCHMITZ CARGOBULL | 1232789 |
| TIRSAN | 21151105033 |
| VOLVO | WA9253771000 |
